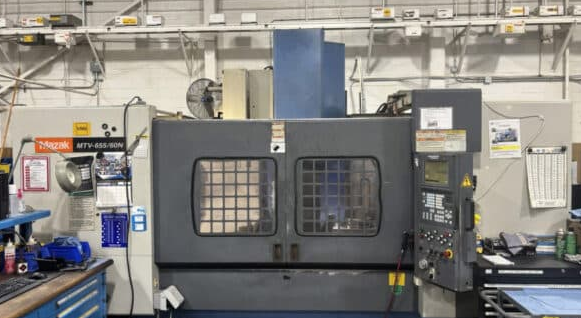

Mazak MTV-655/60N 3 Axis

MAZAK MTV-655/60N
1999

Pallet size 68.5″ × 25.6″
X-axis travel 59.06″
Y-axis travel 25.6″
Z-axis travel 25.6″
Spindle center to top of pallet 7.87″–33.46″
Maximum table load 4409 lbs
Maximum workpiece size (L/W/H) 68.5″ / 22.5″ / 30.31″
Spindle taper #50
Spindle horsepower (30 min / continuous) 25 HP / 20 HP
Constant torque range 559 ft-lbs
Spindle speed 25–6000 RPM
Magazine capacity 30
Tool-to-tool time 2.4 sec
Chip-to-chip time 6.0 sec
Maximum tool diameter 4.92″
Maximum tool diameter with adjacent pockets empty 10.23″
Maximum tool length 15.74″
Maximum tool weight 44 lbs
Rapid traverse (X & Y axis) 1024 IPM
Rapid traverse (Z axis) 787 IPM
Floor space required 175″ × 155.3″ × 117.8″
Machine weight 24,251 lbs
Fusion 640M CNC control
Tsudakoma rotary table
Chip conveyor
Automatic tool length measurement
