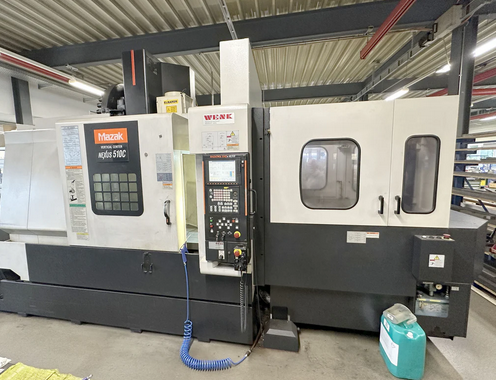

Mazak NEXUS 510C 3 Axis

x-axis travel 1050 mm
y-axis travel 510 mm
z-axis travel 510 mm
rapid traverse 36 m/min
control Mazatrol 640M Nexus
linear scale system X Y Z
coolant system 250 l
coolant through spindle 15 bar
Renishaw probe
tool break control
tool measuring device
synchronized tapping
automatic switch off
PCMCIA interface
lamp
oil mist extractor
table length 1300 mm
table width 550 mm
number of t-slots 5
distance of t-slots 100 mm
t-slot width 18 mm
table load max 1200 kg
spindle speed 35–12000 rpm
spindle power 18.5 / 7.5 kW
spindle nose ISO 40
distance spindle nose to table 150–660 mm
feed range 1–8000 mm/min
tool positions 30
tool diameter max 80 mm
tool diameter with free adjacent pockets 125 mm
tool length 350 mm
max tool weight 8 kg
chip to chip time 2.9 s
number of tables 2
2-way pallet changer
chip conveyor
machine weight 6900 kg
machine length 2880 mm
machine width 2835 mm
machine height 2783 mm
