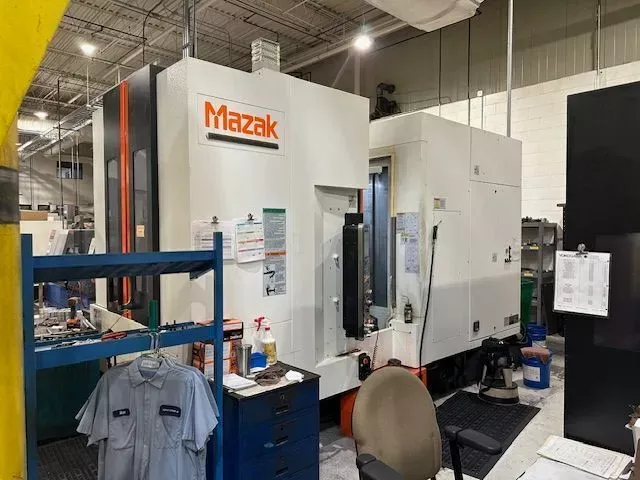

Mazak NEXUS HCN 4000II 4 Axis

MAZAK NEXUS HCN 4000II
2012

Pallet size 15.7 in x 15.7 in
Number of pallets 2
Pallet weight capacity 880 lb
Pallet surface to spindle center 3.15 in to 27.95 in
Pallet center to spindle gauge line 2.76 in to 27.96 in
Workpiece dimensions 24.8 in x 35.43 in
X-axis travel 22.05 in
Y-axis travel 25.2 in
Z-axis travel 25.2 in
B-axis travel .001°
Rapid traverse X 2362 in/min
Rapid traverse Y 2362 in/min
Rapid traverse Z 2362 in/min
Cutting feed rate 2362 in/sec
Spindle speed 18000 rpm
Spindle taper #40
Main motor 40 hp
Automatic tool changer 60 tools
Tool diameter 3.74 in / 5.9 in
Tool length 16.3 in
Tool weight 26 lb
Tool change time 1.2 sec
Machine weight 24000 lb
Control MAZAK MAZATROL MATRIX CNC color control
Mazatrol Matrix conversational control
Background tool path check
Through spindle coolant system 1000 PSI Superflow V8A/1000
Synchronous tapping
Spindle chiller
Automatic pecking cycle with load monitoring
Renishaw probe MP60
Automatic tool length measurement
Rear discharge chip conveyor
Adaptive feedrate control
Tool life monitoring
EIA, spiral, EIA 3D compensation
Rotation
Geometric compensation
Scaling
External data I/O
Shape compensation
Thread cutting
Inverse time programming
Automatic ATLM
Polar coordinate input
Comparison stop
G54.1
Inch/metric conversion
G00 slope constant
600 variable sets
EIA helical tapping
EIA helical pattern
Tilted work plane
Pitch error compensation
CT 5th axis
All available manuals
