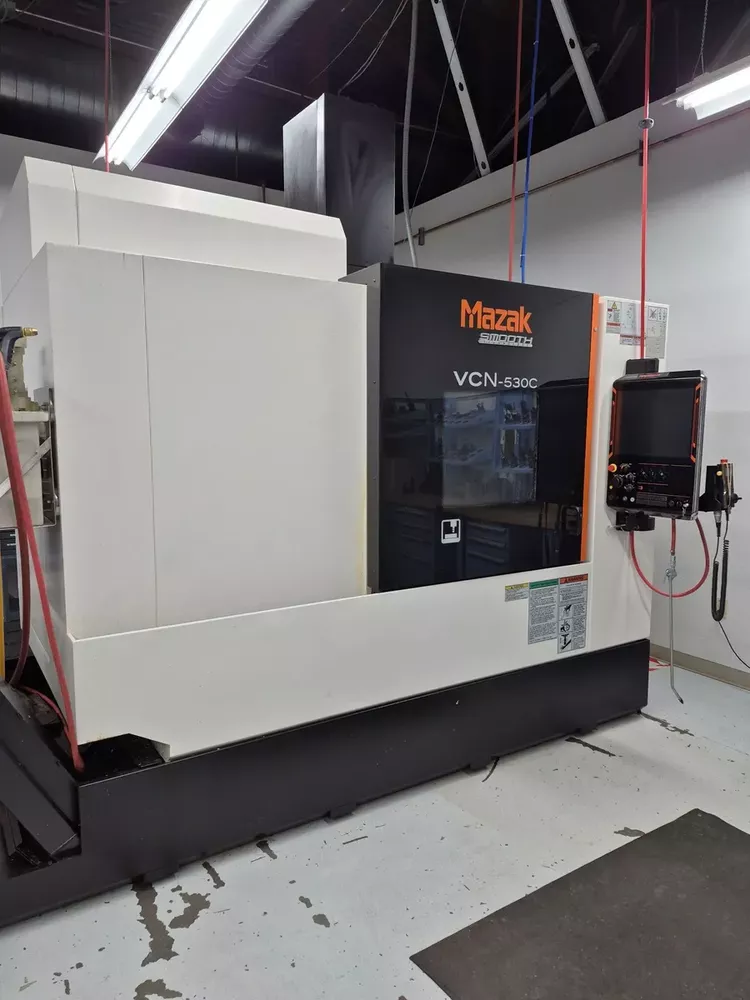

Mazak NEXUS VCN 530C 3 Axis

X-axis travel: 41.34 in
Y-axis travel: 20.87 in
Z-axis travel: 20.08 in
Rapid traverse X: 1,654 in/min
Rapid traverse Y: 1,654 in/min
Rapid traverse Z: 1,654 in/min
4th axis contouring rotary table
Control: Mazatrol Smooth G CNC color control
EIA
High smoothing control
Spiral interpolation
EIA 3D compensation
EIA 3D compensation rotation
Rotation function
Geometric compensation
Scaling function
External data I/O
High speed function
Shape compensation
Thread function
Inverse time function
Auto ATLM
Polar coordinate input
Comparison stop
G54.1
Synchronous mill tapping
Rot-axis shape compensation
Variable 600 sets
EIA helical tap cycle
EIA pattern cycle
2nd auxiliary function
Tilted work plane
Pitch error compensation
Renishaw RTS wireless tool length measurement
Renishaw part probe
Table length: 51.18 in
Table width: 21.65 in
Table load capacity: 2,630 lb
Spindle nose to table: 5.90 – 25.98 in
Spindle speed: 15,000 RPM
Spindle taper: BT40
Main motor: 25 hp
Cutting feed rate: 987 in/min
Automatic tool changer: 30 tools
Maximum tool diameter: 4.92 in
Maximum tool length: 13.78 in
Maximum tool weight: 17.6 lb
Machine weight: 15,600 lb
Nikken RNC 202 8 in 4th axis contouring rotary table
Tailstock for rotary table
Chip conveyor
