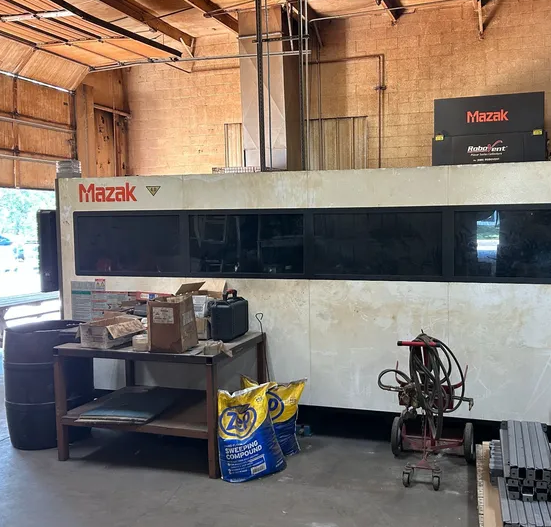

Mazak OPTIPLEX 3015 FIBER CNC CONTROL

Axis travel X-Y-Z 122.046" x 62.20" x 5.91"
Axis drive system X1/X2-Y Helical rack & pinion
Axis drive system Z Digital servo drive, ball screw
Axis processing movement Stationary table with X-Y-Z movement (Flying Optics)
Design Bridge gantry style
Positional accuracy X-Y ±0.002"/19.68"
Positional accuracy Z ±0.0004"/3.94"
Repeatability X-Y-Z ±0.0012"
Axis acceleration X-Y-Z X-Y 0.6G, Z 0.6G
Rapid traverse rate X-Y 2362 ipm (3340 ipm 45° vector)
Rapid traverse rate Z 2362 ipm
Position system Encoder – semi-closed loop
Z axis to table clearance 5.91"
Z axis profiler Non-contact type/capacitance
Laser power 4000 W
Robo Vent dust collector
Operating hours 9421
