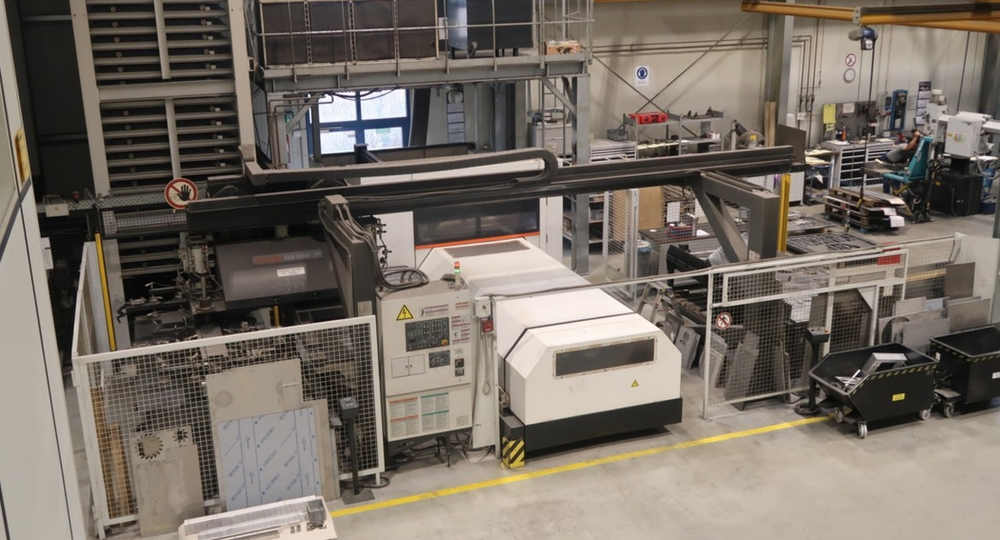

Mazak Super-Turbo-X510 Mk III RTC Mazatrol Preview M

X-axis travel: 3,260 mm
Y-axis travel: 1,545 mm
Z-axis travel: 430 mm
Rapid traverse X/Y/Z: 24 / 24 / 25 m/min
CNC control: Mazatrol Preview M
Laser type: CO₂ laser
Laser power: 4,000 W
Number of cutting heads: 1
Table length: 3,050 mm
Table width: 1,525 mm
Maximum workpiece size: 3,050 x 1,545 x 25 mm
Maximum sheet thickness: 25 mm
Maximum table load: 915 kg
Material support height: 375 mm
Table height from floor: 900 mm
Operating hours: 31,400 h
Machine space requirement: 8 x 2.9 x 2.6 m
Machine weight: approx. 14.2 t

Features / equipment
Rotary NC axis for tube processing
NC rotary table
Portal loader with vacuum lifting system
Automatic sheet loading and unloading
Vacuum lifting device
Finished part unloading table
Thread tapping unit
Drill unit with tool magazine
Intelligent nozzle changer magazine
Sliding rear safety enclosure
Extraction system
Cooling unit 160 l
Transformer on upper platform
Electrical cabinet with operator panel
Color TFT display
64-bit CPU
20 GB hard drive
EIA/ISO programming format
Demonstration-ready condition
