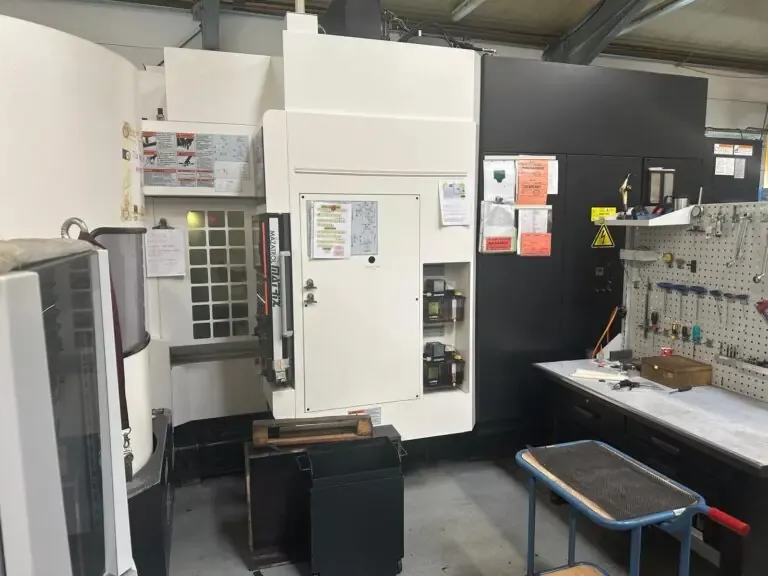

Mazak VARIAXIS 630-5X II 5 Axis

X travel: 630 mm
Y travel: 765 mm
Z travel: 510 mm
A axis: +30° / -120°
C axis: 360°

Max distance spindle nose to top edge of table (horizontal): 740 mm
Min distance spindle nose to top edge of table (horizontal): 230 mm
Max distance spindle nose to table center (vertical): 690 mm
Min distance spindle nose to table center (vertical): 180 mm
Max table load: 500 kg
Max workpiece diameter: 730 mm
Max workpiece height: 500 mm
Pallet size: 500 x 500 mm
Spindle taper: SK-40
Max spindle speed: 12000 rpm
Spindle power: 22 kW
Tool positions: 120

Features / equipment
Mazatrol Matrix control
5-axis simultaneous machining
Mazak Palletech system
6-pallet changer
Synchronized tapping
Rapid traverse constant inclination angle during movement
3D coordinate conversion
Mayfran Concep 2000 coolant system
Swarf conveyor
70 bar high pressure pump
