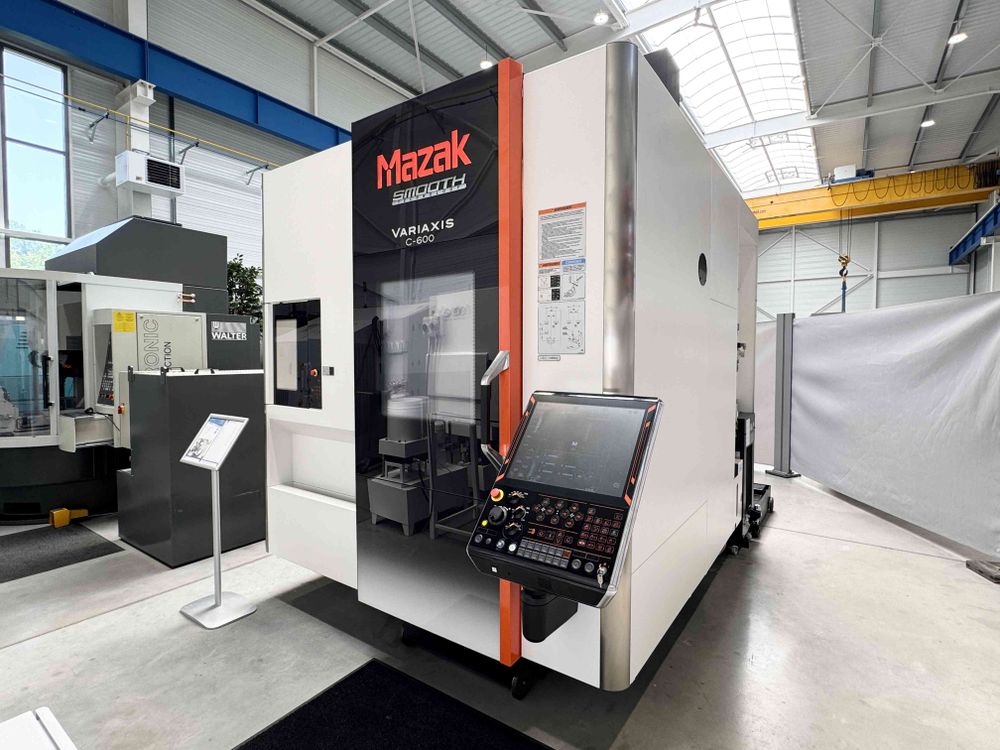

MAZAK Variaxis C600 – Vertical Machining Center
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2020
Number of simultaneous axes: 5
Stroke X axis: 650 [mm]
Stroke Y axis: 550 [mm]
Stroke Z axis: 530 [mm]
Feed rate on X, Y and Z axes: 42000 [mm/min]
Min. distance spindle nose / table: 50 [mm]
Max. distance spindle nose / table: 580 [mm]

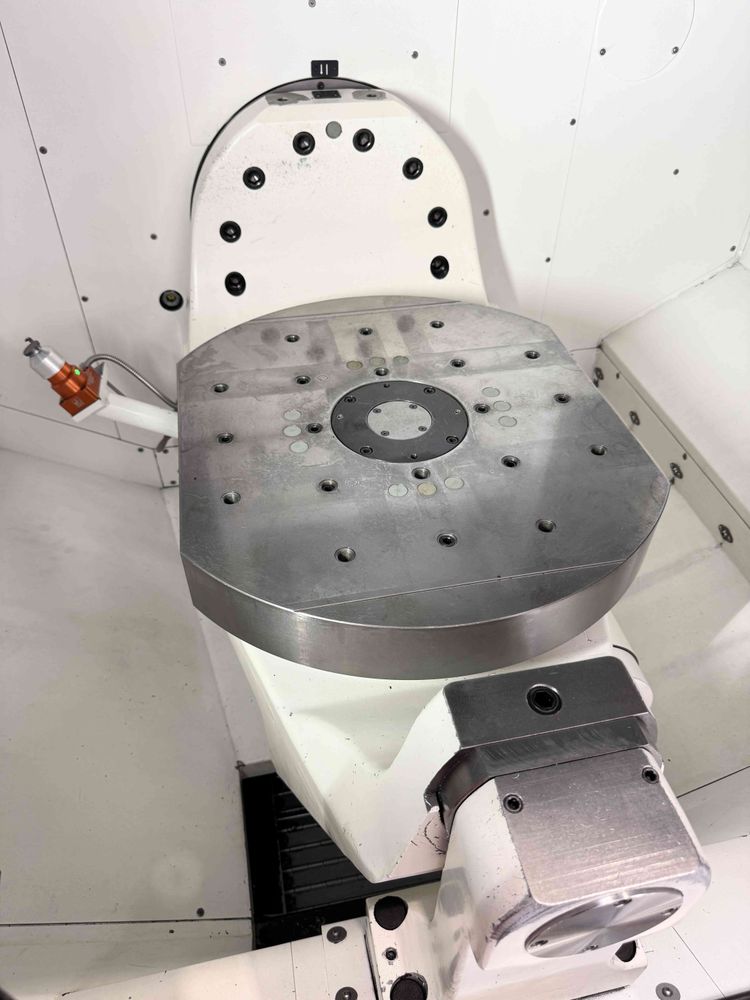

Table dimensions: Ø600 x 500 [mm]
Max. load on table: 500 [Kg]
Stroke C axis : table revolution: 360 [°]
B axis swivelling stroke: -30 [°] / +120 [°]

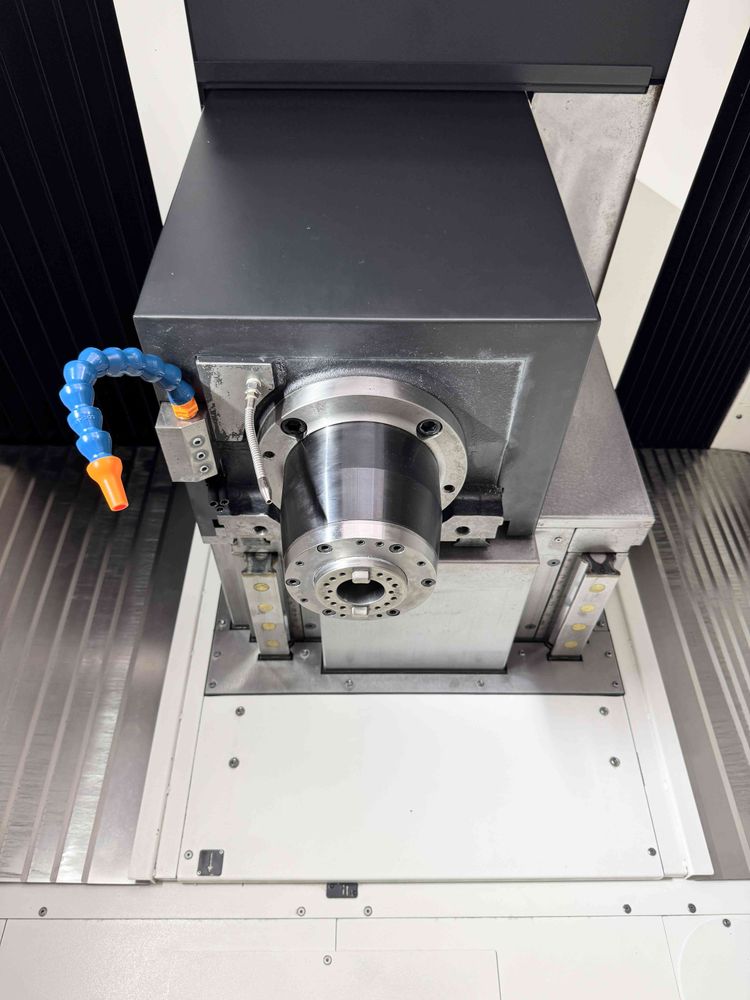

Spindle type: BT40
Max. spindle speed: 12000 [rpm]
Spindle power: 11 [kW]

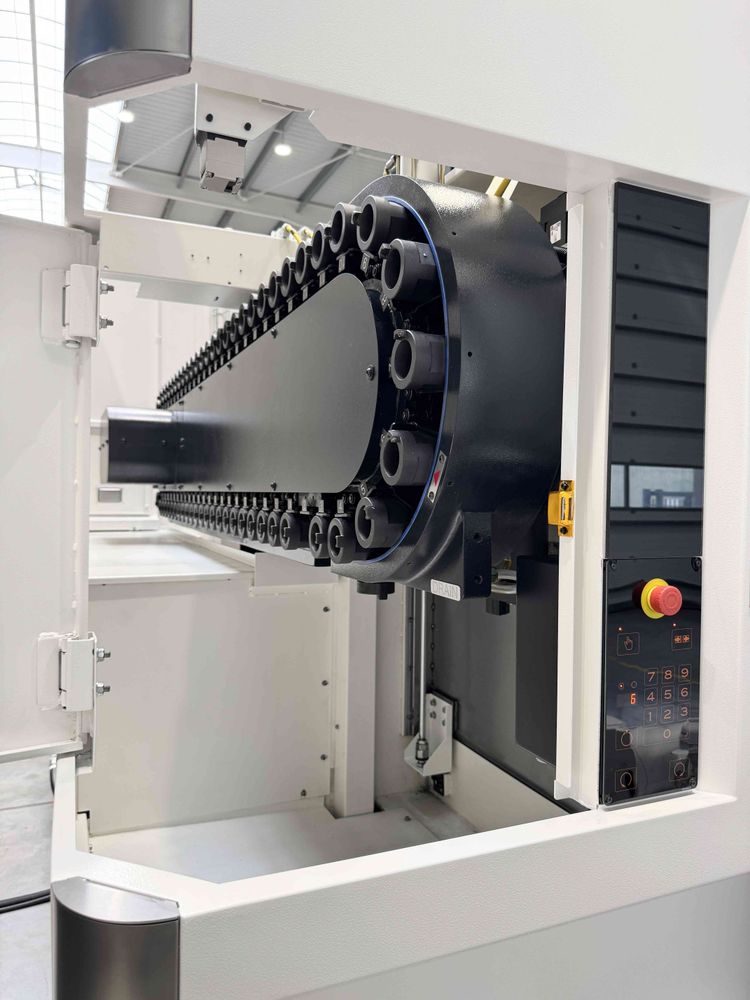

Tool changer magazin number of stations: 60
Max. tool length: 300 [mm]
Max. weight of single tool: 8 [Kg]
Max. tool diameter: 80 - 130 [mm]
Total power required: 46.7 [kVA]
Supply voltage : 400 [V]
Machine dimensions : 2350 x 2962 x 3039 [mm]
Layout dimensions : 5010 x 2470 [mm]
Weight: 10000 [Kg]
EQUIPMENT INCLUDED:

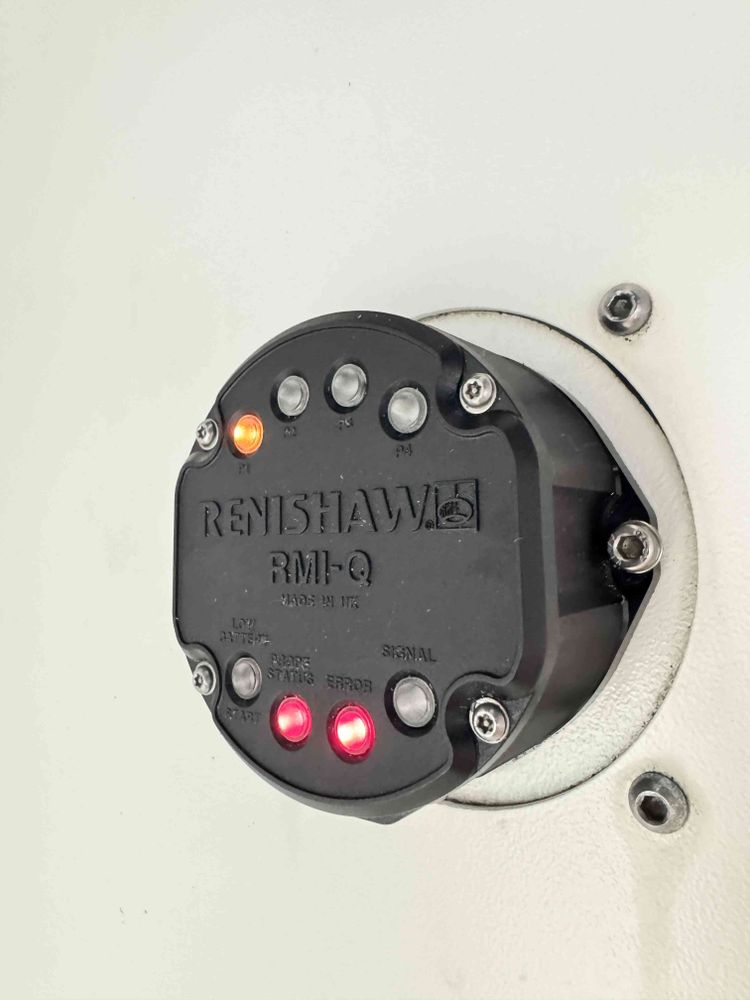

x1 RENISHAW part probe type RMP600

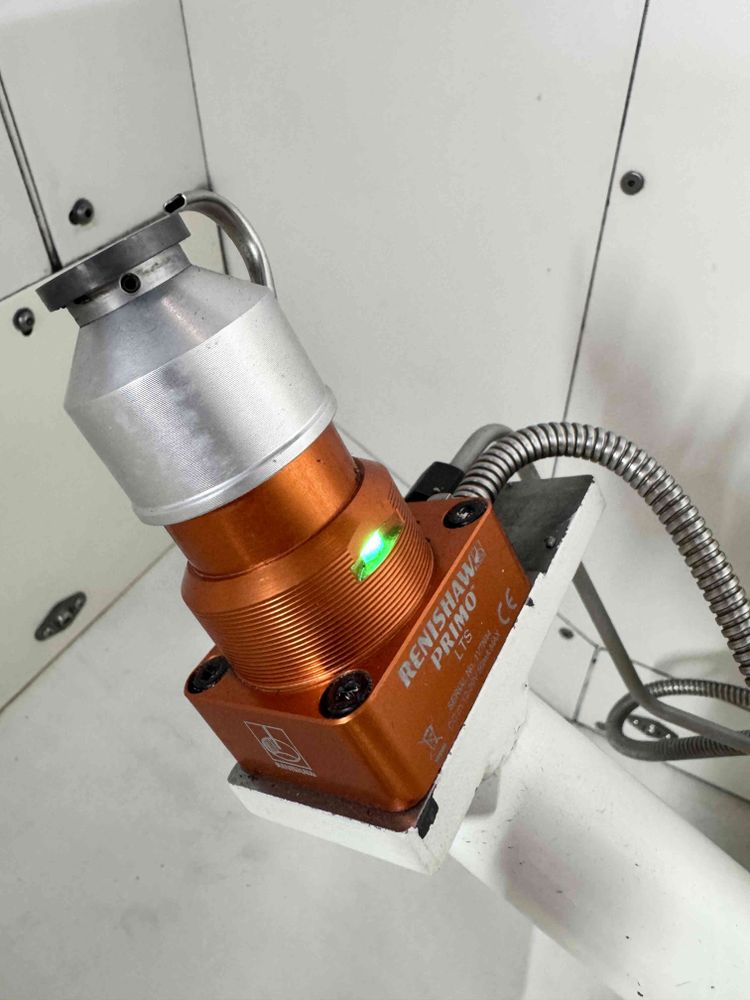

x1 RENISHAW tool probe type PRIMO LTS
x1 RENISHAW calibration sphere
x1 electronic handwheel

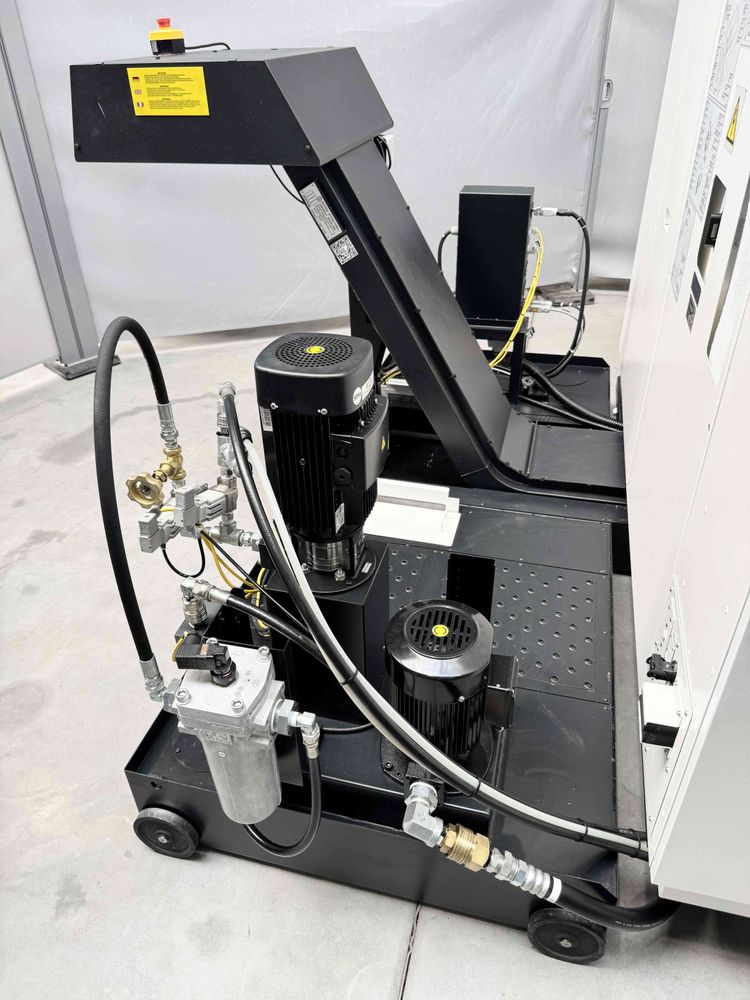

x1 chip conveyor
x1 high-pressure pump 15 [bar]
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
