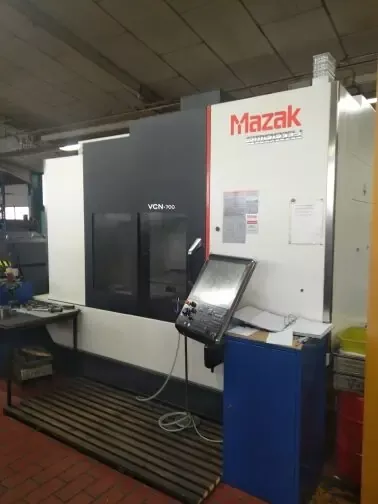

Mazak VCN-700 3 Axis

X-Axis Travel 1,300 mm
Y-Axis Travel 700 mm
Z-Axis Travel 650 mm
Distance Spindle Nose to Table Surface 150 - 800 mm
Rapid Traverse 42 m/min
Milling Spindle Drive Power 30 kW
Milling Spindle Max. Speed 18,000 RPM
Spindle Taper SK-40, DIN69781
Table Size 1,300 x 550 mm
Max. Table Load 1,800 kg
Tool Magazine / ATC 30 Tool Slots
Max. Tool Diameter 80 mm
Max. Tool Diameter with Free Additional Space 125 mm
Max. Tool Length 350 mm
Max. Tool Weight 8 kg
Air Blowing Device on Milling Spindle
Cooling with Air Through Rotating Milling Spindle
Measuring Package Renishaw RMP60
RTS Touch Probe for Tool Measurement
Mazak API
Mayfran CleanSweep Chip Conveyor, Ejection Left
Air and Coolant Blow Through RH Spindle
High Pressure Pump 20 Bar
Cover Rinse
Electric Handwheel
Drilling Cycle with Torque-Dependent Chip Breaking
Synchronized Thread Cutting
Engraving Function
Max. Program Memory 32 MB
Rapid Traverse Constant Angle of Inclination
Additional Workspace Lighting
Signal Lamp
Oil Mist Extraction
Switch-On Time Approx. 5,000 Hours
Pure Machining Hours Approx. 400 Hours
