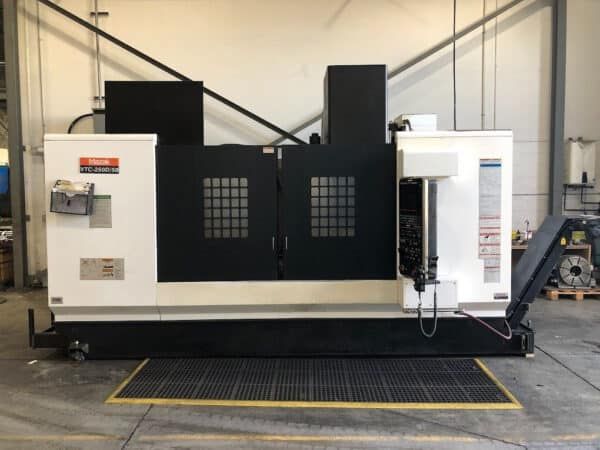

Mazak VTC-250D/50 4 Axis

X axis travel 69.3 in
Y axis travel 25 in
Z axis travel 25.6 in
C axis 0.001° indexing and clamping
Mazatrol Matrix Nexus 2 control
Renishaw RTS radio tool setter
Renishaw workpiece probing software
High pressure coolant through spindle
Mayfran chip conveyor
Troyke DL-16.5B 4th axis rotary table 16.5 in diameter
Rotary table through hole 6.5 in
Rotary table tailstock
Maximum table load 2778 lb
Spindle speed 6000 rpm
Spindle motor 30 hp
Spindle taper CAT 50
ATC capacity 24 tools
Maximum tool diameter 4.3 in
Maximum tool length 13.7 in
Maximum tool weight 17.8 lb
Table size 82.7 × 25 in
Minimum spindle nose to table 7.1 in
Maximum spindle nose to table 32.2 in
Electrical requirement 480 V 60 A 50 kVA
Machine dimensions 171 × 134 × 105 in
Machine weight 24000 lb
