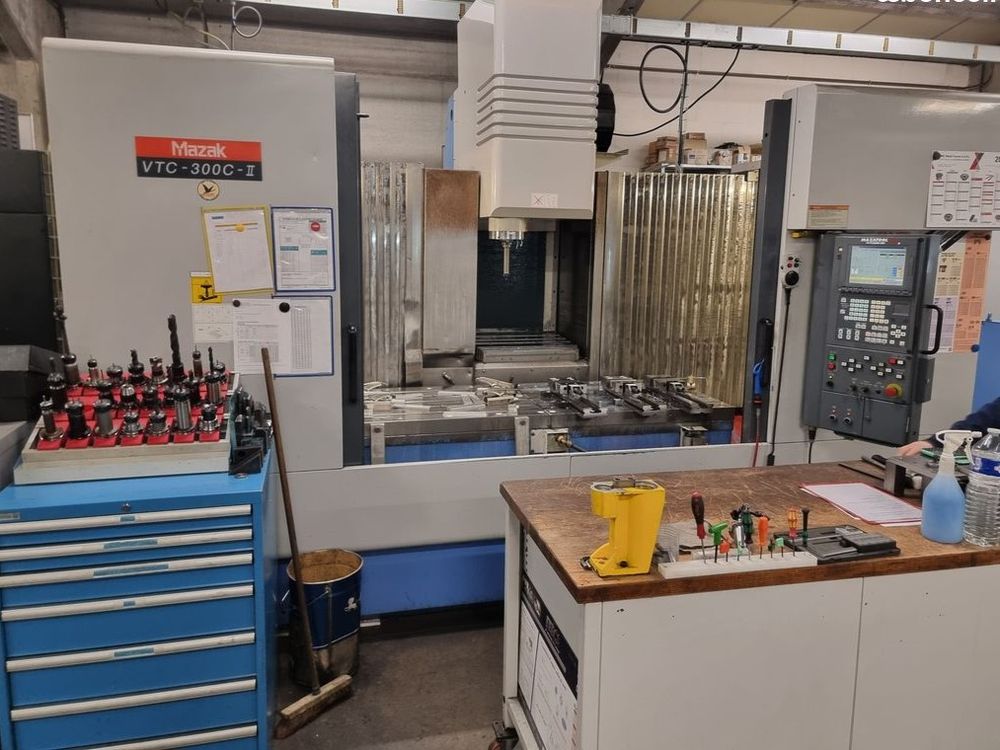

Mazak VTC 300 C II Machining Center 3 Axis

X/Y/Z Travels: 1740 x 760 x 660 mm
Table: 2000 x 760 mm
Spindle Nose to Table Distance: 180 – 840 mm
Table Dimensions: 2000 x 760 mm
Max. Table Load Capacity: 1400 kg
X/Y/Z Rapid Traverse: 36 m/min
Spindle Taper: CAT 40
Max. Tool Diameter 80 mm
Max. tool diameter with adjacent empty pockets: 110 mm
Max. tool length: 350 mm
Max. tool weight: 8 kg
Main spindle speed: 12,000 rpm
Power: 18.5 kW
Machine dimensions: 4,000 x 3,500 x 3,100 mm
Machine weight: 11,500 kg
Options:

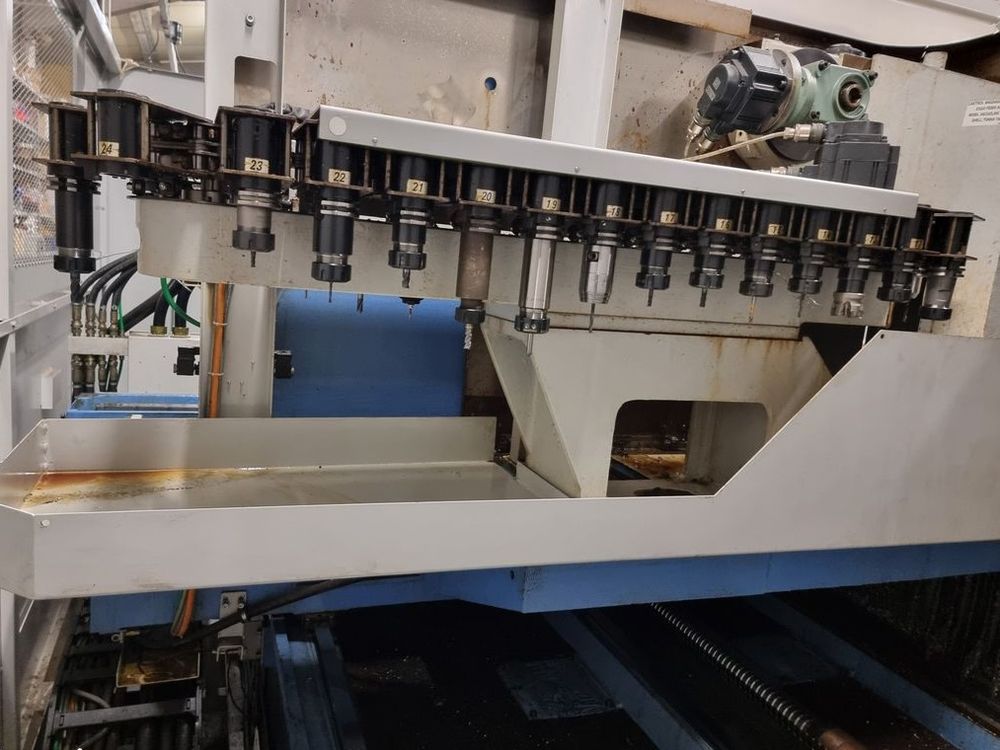

30-tool magazine
15-bar spindle coolant system
Tool gauge
Electronic handwheel
