Mazak VTC 300C Spindle distance to table: 180 – 840 mm
Ref :
2728769-3-MT
Condition :
Used
Manufacturer :
Mazak
Model :
VTC 300C
Short Description :
Spindle distance to table: 180 – 840 mm
Year(s) :
2003
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

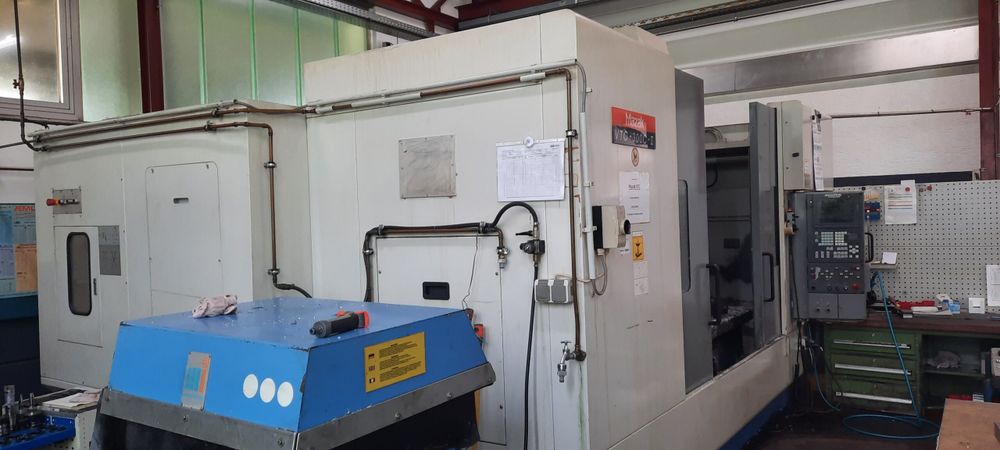

MAZAK VTC 300C
Year: 2003
Mazatrol 640M CNC
Travel X/Y/Z: 1740 / 760 / 660 mm
Rapid traverse X/Y/Z: 36000 mm/min
Table size: 2000 x 760 mm
Table load capacity: 1400 kg
Spindle distance to table: 180 – 840 mm
Main spindle speed: 12000 min⁻¹
Main spindle power: 18.5 kW
Main spindle torque: 98 Nm
SK 40 tool holder
48-position tool magazine (extended)
Automatic tool changer
High-pressure cooling through spindle: 15 bar
Spindle air blast system
Chip conveyor
Renishaw NC-1 measurement system
Partition wall for pendulum machining (simultaneous loading/unloading in adjacent area)
