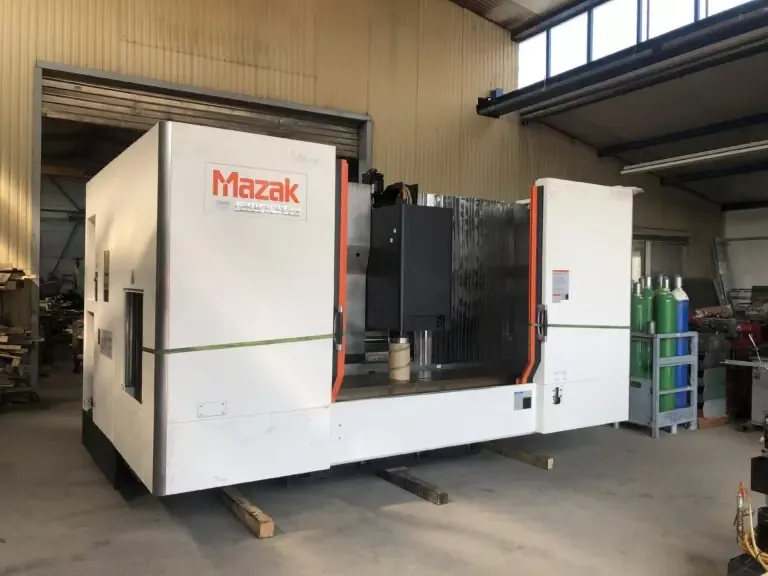

Mazak VTC-530-C 3 Axis

X-axis travel 1740 mm
Y-axis travel 530 mm
Z-axis travel 510 mm
Control Mazatrol Smooth G
Rapid traverse 42 m/min
Table size 2300 x 530 mm
Maximum table load 1000 kg
Spindle power 18.5 kW
Maximum spindle speed 12000 rpm
Spindle taper SK-40 DIN69871
Number of tool stations 30
Maximum tool diameter 80 mm
Maximum tool diameter with adjacent pocket empty 125 mm
Maximum tool length 350 mm
Maximum tool weight 8 kg
Tool length measurement
Chip conveyor
Air blow through spindle
Coolant blow through spindle
High pressure pump 15 bar
Cover rinse
Synchronized tapping
Rapid traverse constant angle of inclination
Dimensions 4100 x 2800 x 2685 mm
Weight 9800 kg
Switch-on time approx. 36000 h
Machining time approx. 11500 h
