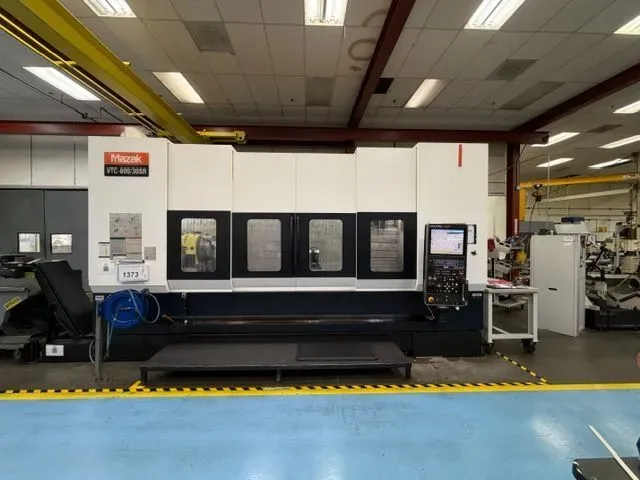

Mazak VTC-800/30 SR 4 Axis

X-Axis Travel: 118.11"
Y-Axis Travel: 31.5"
Z-Axis Travel: 28.35"
Rapid Traverse X: 1,968 ipm
Rapid Traverse Y: 1,968 ipm
Rapid Traverse Z: 1,968 ipm
B-Axis Travel: ±110°
Control: MAZATROL MATRIX CNC Color Control
EIA/ISO Functions
High Smoothing Control
Simultaneous 5-Axis Machining
Tool Center Point Control
5-Axis Tool Compensation
5-Axis Tool Length Compensation
Tool Tip Constant
Dynamic Compensation
Shape Compensation
Tilted Work Plane
Program Memory Expansion
1000 PSI Through-Spindle Coolant
High Pressure Coolant
Ballscrew Coolers
Full Enclosure
Chip Conveyor
18" Rotary Table
Main Spindle Speed: 18,000 RPM
Main Spindle Motor: 49.9 HP
Spindle Taper: BIG PLUS CT40
Table Size: 137.8" × 32.28"
Maximum Table Load: 8,819 lb
ATC Capacity: 48 Tools
Maximum Tool Diameter: 3.15" / 5.12"
Maximum Tool Length: 13.78"
Maximum Tool Weight: 17.6 lb
Machine Dimensions: 207" × 157"
Machine Weight: 39,683 lb
