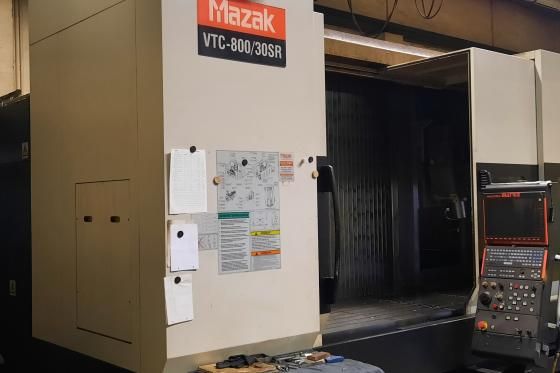

Mazak VTC 800 / 30 SR 5 Axis

MAZAK VTC 800 / 30 SR
2009

control: Mazatrol Matrix Nexus
X travel: 3000 mm
Y travel: 800 mm
Z travel: 720 mm
B axis swivel: 110°
table length: 3500 mm
table width: 820 mm
table diameter: 500 mm
table load capacity: 2500 kg
feed rate X axis: 50000 mm/min
feed rate Y axis: 50000 mm/min
feed rate Z axis: 50000 mm/min
spindle taper: ISO40 / BT / MK
spindle power: 26 kW
spindle speed: 18000 rpm
tool magazine capacity: 30
coolant through spindle: 15 bar
number of controlled axes: 5
chip conveyor: yes
coolant system: yes
measuring probe: RMP60
synchronous threading: yes
NC rotary table: 500 mm with 360,000 positions
working hours: 12700 h
dimensions (L × W × H): 5250 × 3550 × 3152 mm
weight: 15800 kg
