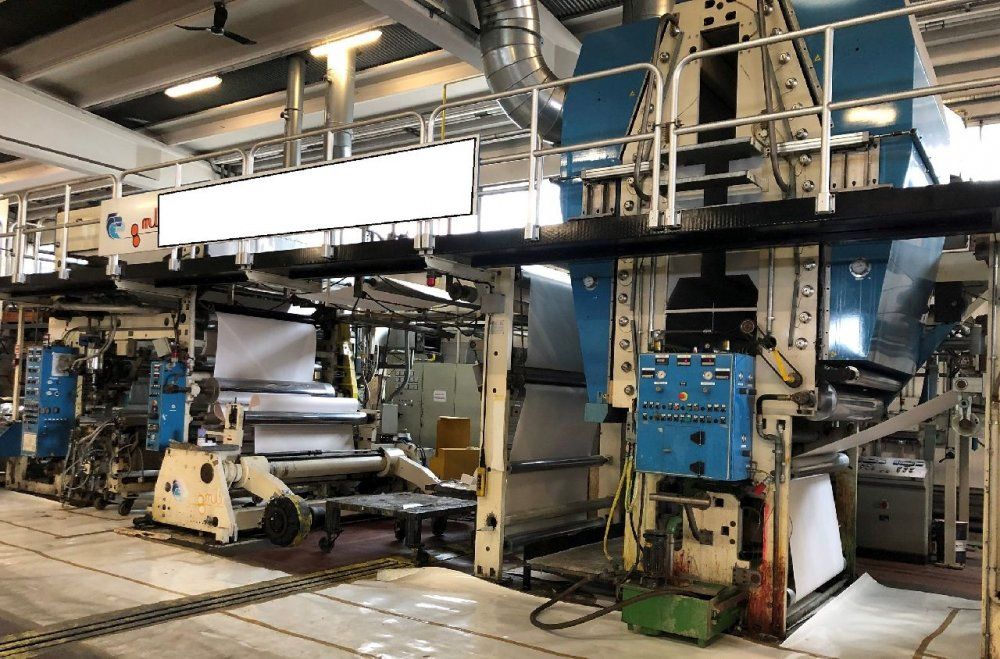

MB COMBI Laminator / coating machine

Application Lamination + coating
Type of lamination/coating COMBI / INTECHANGEABLE TROLLEY
Working width (mm) 1700
Materials Paper and board, Film and Alu foil ( secondary unwi)
Speed 400 mpm
First unwinder type Single position shaftless double brake
Max diameter reel unwinder 1600
Secondary unwinder type Single position shaftles
Max diameter reel unwinder 1200
Rewinder type Surface driven shaftless
Max diameter reel rewinder 1900

Coating unit :
Trolley design, available trolleys:
- Semi flexo - hot melt/wax with Wax
- Hot melt trolley and Semi flexo trolley 3 meter tunnel with one blowing and one exhaus fan and one gas burner for lamination unit with semiflexo trolley

Second Coating unitr :
- Type direct gravure - 2x drying tunnels 4 m length ( tot 8 m) with independent ventilation
- 2 x gas burners, 2 x in blowers, 1 x suction blower.
- Automatic recirculation with Nira LEL control
- Coating rollers 30,70,80,280 lines/cm

Possible operation :
1) Wax Coating laminating Paper - Alu foil or paper film and primer in line
2) Wax paper coating one side or doiuble side
3) Hot melt coating
4) Water based lamination wet bond paper -Alu foil with semiflexo trolley and primer in line
5) Water based lamination + costing or lacquering
