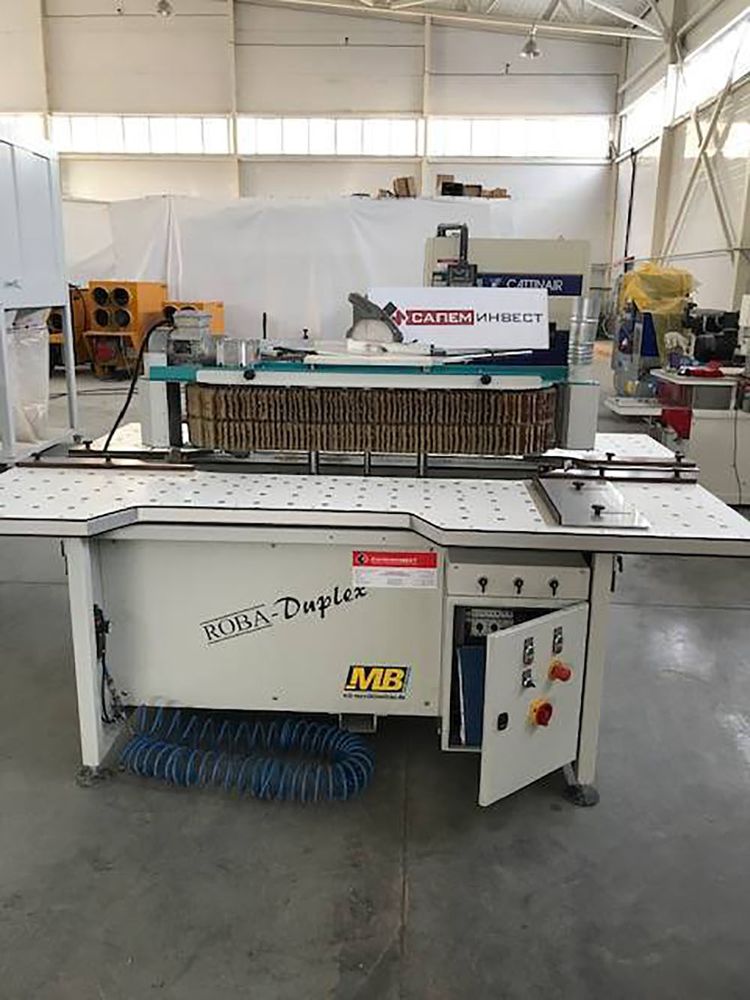

MB Maschinenbau ROBA DUPLEX TWIN

Drive motor 0.75 kW
Sanding belt width 2x100 mm
Sanding belt length 1100 mm
Sanding belt speed 60...230 m/min stepless adjustment
Aspiration connection Ø100 mm
Tilt table 0...10 degrees
Air cushion on the desktop
Electrical control cabinet, IP 54 protection
Frequency converter
Power consumption 1.5 kW
Power supply 400 V, 50 Hz, 3 phases
The machine is manufactured according to CE standards
Machine length is 2000 mm
Machine width: 1160 mm
Machine height is 1200 mm
Machine weight is 450 kg

Machine composition:
Electric-welded machine frame
An air-cushioned work table to protect the surface of the workpiece from scratches, powered by an air compressor.
The dimensions of each of the 2 work tables are 780 x 2000 mm.
Height from floor to table 900 mm
The work table is equipped with adjustable side stops.

Two sanding belts, each 100 mm high, with 138+138 brush sanding segments, which are easy to install
and remove from the sanding belt. Each set of sanding segments can have different grain sizes, for example, for preliminary and intermediate sanding of varnish.
The grinding device is pneumatically raised and lowered, delivering one or another grinding belt to the working area.
Automatic oscillation of the sanding belt to achieve the best results on the top and bottom edges of the workpiece.
It is possible to install grinding segments with different lengths of 30/45/60 mm
(the machine includes a basic set of grinding segments in accordance with customer requirements)
