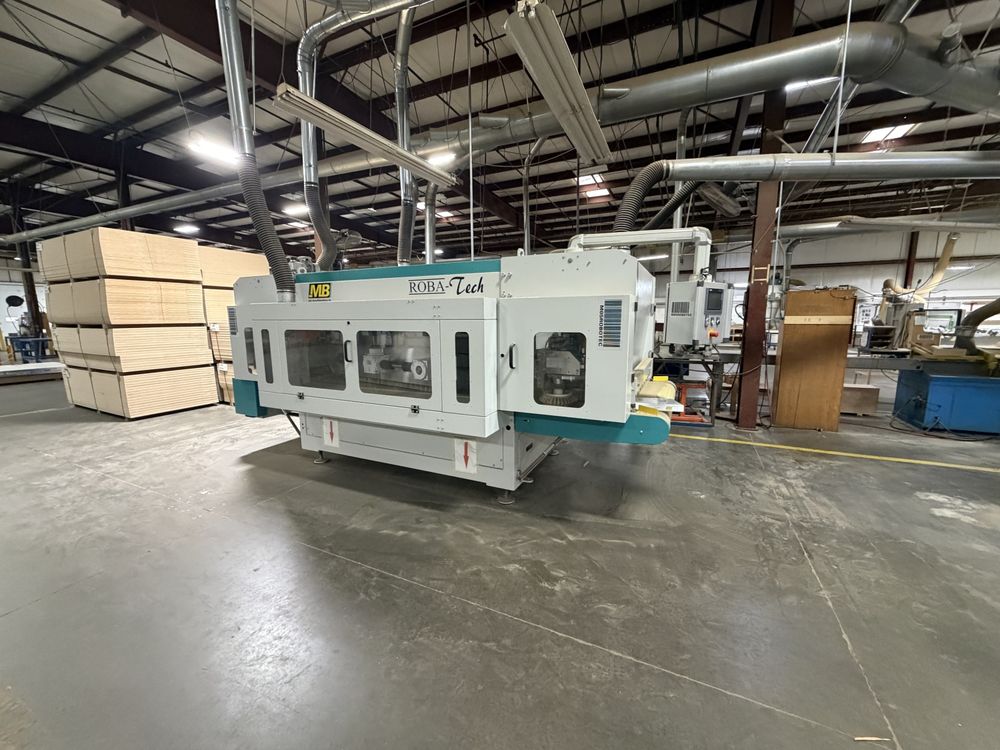

MB Roba RT13-D4-RT-DB

Surface Sanding Machine
Feed Belt: 1300mm (51") Working Width
Feed Speeds: 3.5-12m/min (11.5-36FPM)
Vacuum Bed System with Cleaning Brush for Conveyor Belt
Head Configuration:
First Head is: Roba Profi Disc sanding aggregate D4, 3 Pcs Master Disc, each equipped with 2 or 4 disc tools, Electronic Speed Regulation for the Disc Tools, Pneumatic Oscillation of the Whole Sanding Unit.
Drive Motor of Rotaion Unit .75KW
Three (3) Drive Motors For Disc Tools 1.5KW Each
Equipped with Six(6) Conical 45 Disc Tools with 30 Keyways
Second Head is: Rotational Brush Belt Sanding Aggregate Consisting of:
Plug-in receptacle System for Equipping 174 Sanding Segments
Drive Moto 5.5KW
Sanding Speed 30-140 m/min Infinitely Variable

Programmable Control for Different Sanding Procedures:
a) Oscillation with free selectable oscillation angles between 10 degrees to 45 degrees for opposed sanding against feed direction
b) 360 degree rotation of the main sanding belt with automated adjustment to the feed speed
c) Belt sanding function for opposed sanding against the feed direction
Third Head is: Double brush sanding aggregate
Sanding direction: synchronous-rotational and counter-rotational
Brush diameter: 310 mm
Brush width: 1320 mm
Drive: 2 Motors, 1.1 KW Each infinitely variable between 300 - 700 rpm
