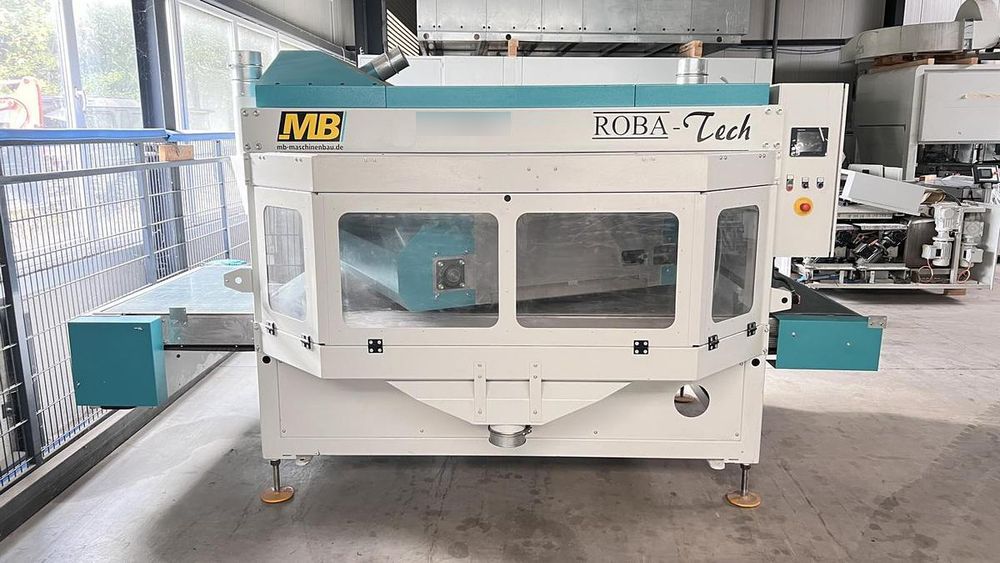

MB Roba Tech 1300

- Brush grinder with rotating brush belt
- Motorized height adjustment of the grinding unit, adjustment range from approximately 0 - 80 mm, freely programmable via the machine control.
- Operating side in the direction of throughput, right
- Rotating brush set consisting of: 174 segment brushes, length 1,300 mm.
Segments are easy to change and are inserted laterally into the brush belt.
- With vacuum conveyor belt
- With cleaning roller for the feed belt

Technical specifications:
- Working width: 1300 mm
- Max. part thickness approx. 80 mm
(Depending on the abrasive coating)
- Working height: 850 - 900 mm
- Continuously adjustable feed rate, 3 m/min - 10 m/min
- Machine length: 3860 mm
- Machine width: 2400 mm
- Machine height: 2000 mm
- Paint finish: RAL 7035, light gray with contrast green
- Voltage: 400 V/50 Hz
- Electrical connection: 16 kW/36 A
- Machine weight: approx. 2600 kg
