MBO A80 + Cobo-Stack
EUROPE (Western and Northern)

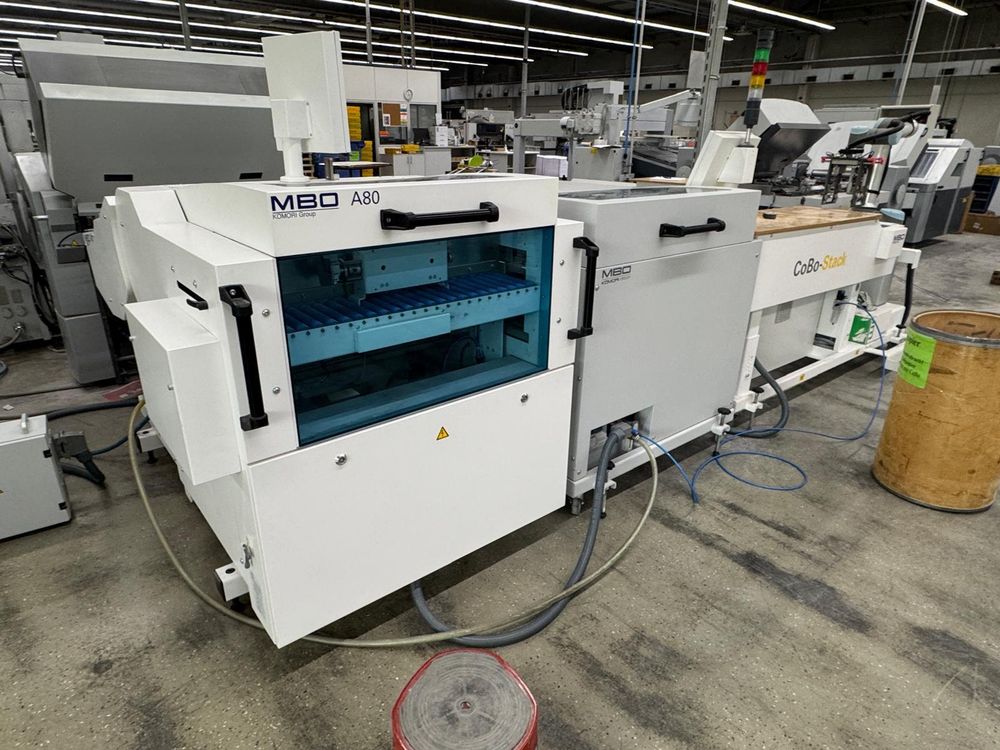

Mobile stacking unit for mark-free delivery MBO A80 (2024) + MBO Cobo-Stack (2024)
M1 Advanced machine control with rotating touchscreen
Counter
Semi-automated setup
Automatic data transfer from the folding machine
Sheet length control and target tracking
Automatic die control
Automatic die adjustment in the direction of travel
Pressing station, pneumatic opening, max. pressing force: 2 t
Product stabilization device, freely adjustable
Collection chute with vibrator, stack level compensation
Ergonomic stack removal height
Max. format: 760 mm x 330 mm
Min. format: 80 mm x 95 mm
Stack height: 3 mm - 160 mm
Infeed height: 420-950 mm (infinitely adjustable)
Max. stacking capacity: 1,000 stacks/trailMax. speed: 200 m/min
Maximum output per sheet for DIN A4: 15,000 sheets/h
Electrical connection: 16 A, 400/230 V, 3.5 kW
Compressed air: 6 bar, 250 l/min, dried - to be provided by the customer
Optimized for the CoBo stack
Note: If one of the preceding units in the system is a unit with M1 Basic machine control, the functionality of the M1 Advanced
Machine control of this folding unit is based on that of a folding unit with M1 Basic
Restricted machine control
Mobile output table
Length: 1955 mm
Pulling plate
Storage compartment
Output side left or right
Electrical interface for CoBo-Stack use
Coupling box steel TF or TD on MtsO Ml
MBO Cobo-Stack from 2024 CoBo Stack
Gripper M (Medium): Product height: 210 mm - 365 mm
Product width:155 mm - 235 mm
Caution: Gripper is a wear part.
Extended stacking height to 1,400 mm by adjusting the robot arm height by 500 mm.
Cobot (no Schulz cage required)
Two pallet positions possible; this allows one pallet to be prepared while the other is being loaded
Visual and audible signals to indicate different operating states
Standard left-hand output
RAS router included; remote maintenance access must be enabled by the customer.
Electrical preparation for use with MBO 480 output
Stack height: 60 mm - 150 mm
Maximum stack weight: 6 kg
Maximum stacks per hour: 300
Maximum pallet height: 900 mm
