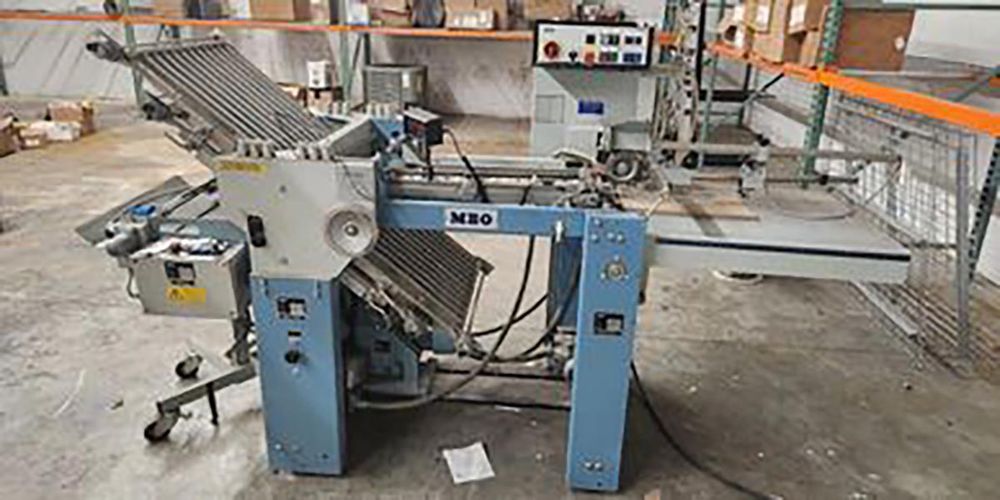

MBO T-49

PILE FEED PA19.25″ x 26″ Pile Feed Folder
2 Fold Plates Up & 2 Fold Plates Down
T-49 Right Angle Folder:
Designed for use with T-49 Straight Folder
2 Fold Plates Up & 2 Fold Plates Down
Combo Rollers

Maximum Sheet Size: 19.25″ x 26″
Minimum Sheet Size: 4″ x 6″
Fold Rolls: Combo Rollers (Poly & Steel)
Fold Plate Configuration: 2-Up & 2-Down
Speed: 2000-6000 ipm
Slitter Shaft Diameter: 1 1/8″
Pile Stack Height: 25.5″
Pump Drive: 1.5 HP
Fold Roll Drive: 3/4 HP

Electrical:
208/230 Volt
3 Phase
60 Hz. Cycle

Dimensions (Main Unit):
Width: 40″
Length: 110″
Height: 42″
Weight: 2020 lbs.
R.A. Weight: 700 lbs.PER FOLDER
