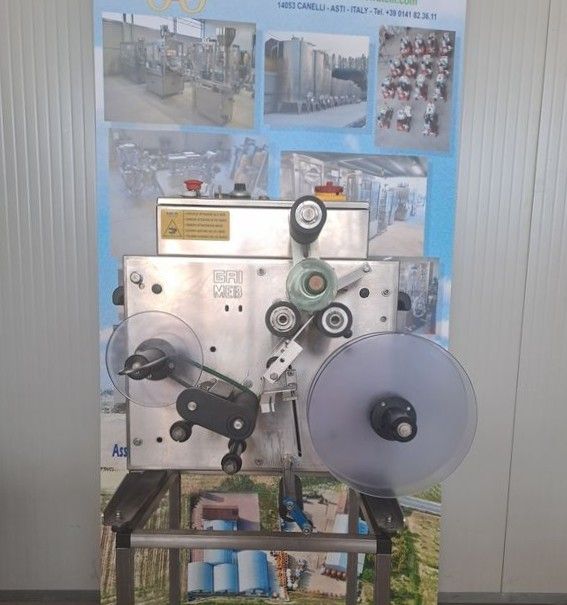

MEB ADS/1 BENCH

Semi-automatic self-adhesive labeling machine, bench version,
for applying labels and/or back labels on the same reel, in stainless steel.
Suitable for cylindrical glass bottles.
Fully electric operation, 0.2 kW, 220 Volt single-phase, 50 Hz power supply.
Output: approx. 600 bottles/hour.

Round bottle dimensions: Ø min. 60 mm – Ø max. 120 mm.
Label dimensions:
• Maximum label length without back label: 340 mm
• Maximum label + back label total length: 340 mm
• Maximum paper backing height: 145 mm
• Minimum label height: 15 mm
• Maximum distance of labels and back labels from the lower belt base: 18 mm

Dimensions: length 700 mm × width 480 mm × height 615 mm approx.
Weight: approx. 45 kg.
Complete with use and maintenance manual and electrical diagram.
