Meba ECO-LINE 320 DGA AUTOMATIC Band sawing machines SemiAutomatic

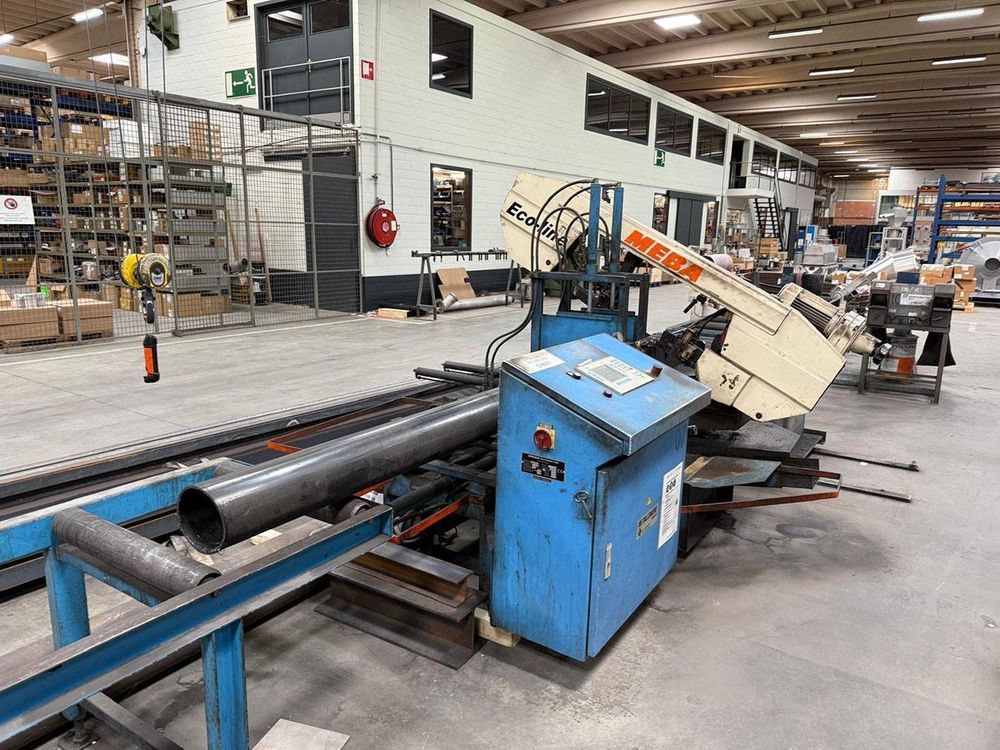

MEBA ECO-LINE 320 DGA AUTOMATIC

Depth of throat: 500 mm
Max height of workpiece: 325 mm
Saw speed: 18 to 115 m/min
Band saw dimensions: 4400 x 34 x 1.1 mm
Machine length: 2680 mm
Machine depth: 2350 mm
Machine height: 1350 mm
Machine weight: 1800 kg
Fully automatic bandsaw with bundle clamp and autofeed
CNC controlled angle positioning
Workpiece width in bundle clamping: 0 to 300 mm
Workpiece height in bundle clamping: 5 to 300 mm
Single material feed length: 0 to 600 mm
Repeated material feed length: 0 to 9999 mm
Cutting capacity at 90°, round: 325 mm
Cutting capacity at 90°, rectangle: 500 x 300 mm
Right mitre cut at 45°, round: 300 mm
Right mitre cut at 45°, rectangle: 300 x 300 mm
Right mitre cut at 30°, round: 200 mm
Right mitre cut at 30°, rectangle: 200 x 200 mm
Left mitre cut at 45°, round: 300 mm
Left mitre cut at 45°, rectangle: 300 x 300 mm
