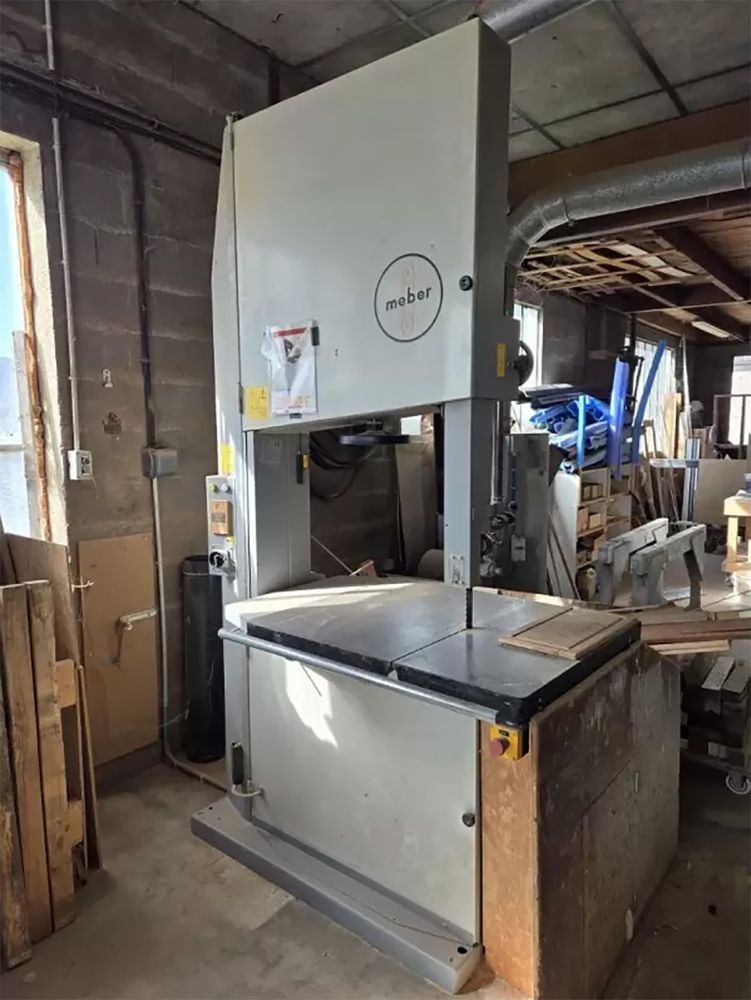

Meber SR-DS 900

MACHINING CAPACITIES:
- Maximum cutting height: 435 mm
- Maximum ripping width (between blade and guide): 565 mm
865 mm without parallel guide
- Tilting table: 0 to 20°
- Flywheel rotation speed: 700 rpm

MACHINE COMPONENTS:
- Flywheels: 50 mm wide x 900 mm diameter

Full guard enclosing both flywheels
- Blade tension indicator
- Recommended blade length: 6230 - 6300 mm
- Cast iron table: 810 x 965 mm
Table height from floor: 101.5 cm
- Upper and lower blade guides with rollers

MACHINE SPECIFICATIONS:
- 380V power supply. Three-phase 50 Hz
- Total installed power 5.5 kW (7.5 hp) 13 A
- Top & bottom suction 2xØ140 mm for hose
- CE marking, lockable disconnect switch, emergency stop buttons, door contactor, motor brake
Wrap-around, telescopic blade guard, height adjustable
- Dimensions (WxDxH): see image
- Weight 780 kg
