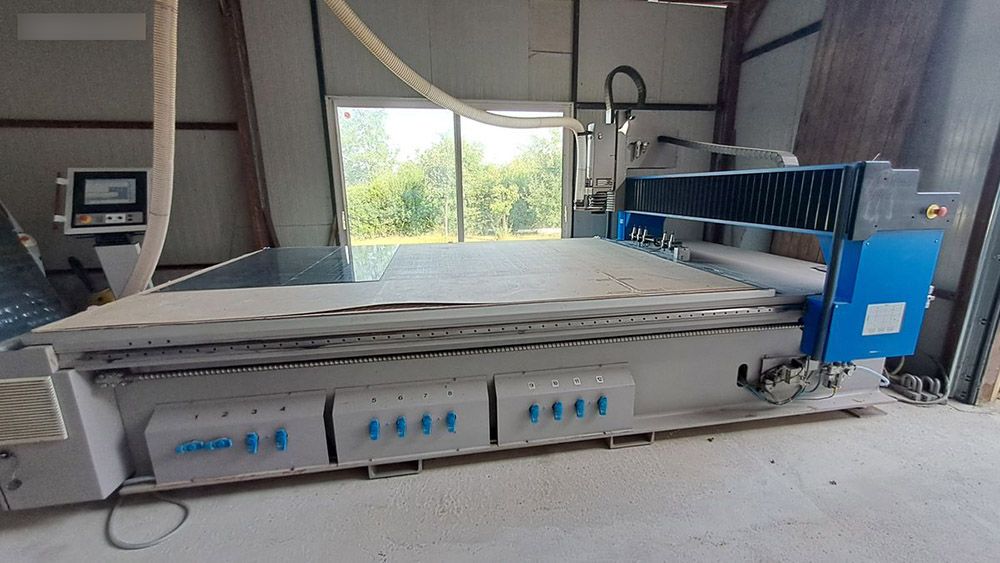

Mecanumeric MECAPRO 3020

CNC Milling Machine – EXCELLENT CONDITION
Working Dimensions
X: 3050 mm
Y: 2050 mm
Z: 250 mm

Robust Structure
Welded steel frame and moving gantry
Aluminum table with sacrificial plate
Ground rails and preloaded ball bearings

Transmission & Motorization
Double ball screws on the X-axis
Ball screws on the Y and Z axes
3 x 750W brushless motors
1 x 300W motor for the Z-axis
Maximum Speed: 417 mm/s

Equipment :
7.5 kW Spindle – 28,000 rpm

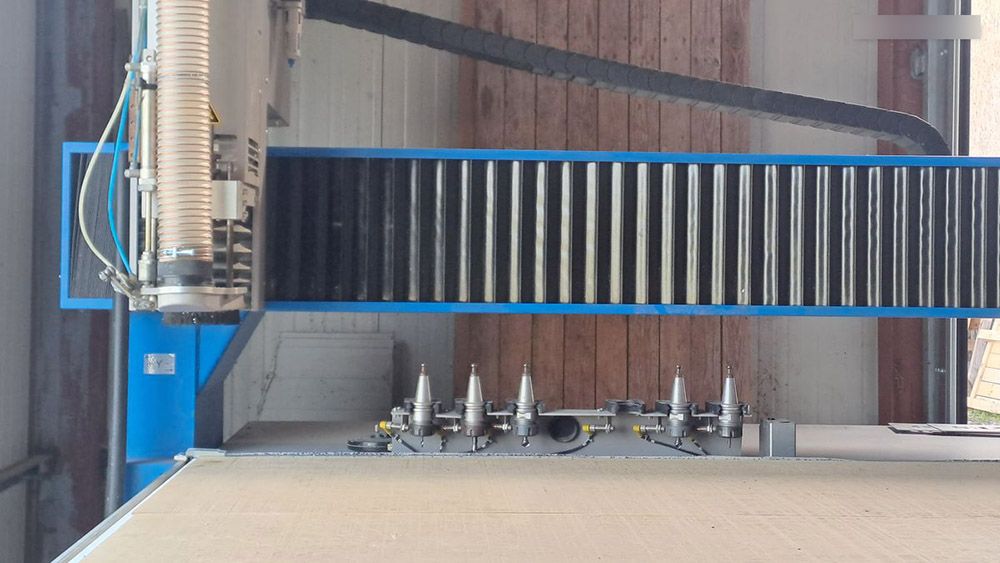

6-position ISO30 automatic tool changer
Nozzle Pneumatically controlled dust collector
Tool lubrication by soluble oil spray

Dust collection
Suction plate
3 turbines of 2.2 kW each

Machine hours
2,734 machine hours
865 spindle hours

Sold without:
Dust collector
Software

Local pickup required

Ideal machine for:
Woodworking
Plastics processing
Panel machining
Signage and signage
Manufacturing workshop
