Mecatech, Bench Top Monoblock Filler/Capper

Ref : 2763172-5-MT

Condition : Used

Manufacturer : -

Model : Mecatech, Bench Top Monoblock Filler/Capper

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Bench Top Monoblock Filler/Capper with Peristaltic Pump

Current Set Up
18mm diameter bottle
15mm diameter pipette cap
5ml fill volume

Bottle size range: 18mm minimum to 50mm maximum diameter and up to 140mm high
Cap size range: 15mm minimum to 25mm maximum diameter

Monoblock Liquid Filling and Capping Machine
Delta PLC and Conch HMI
Supply: 240V 1ph 13A, 4bar pneumatic
Built in infeed rotary table
Caps are placed by hand after the fill
Change parts included as follows:
- star wheels 18mm, 20mm, 40mm & 50mm
- cap chucks 15mm, 19mm, 24mm & 25mm
- nozzles 5mm, 6mm and 8mm
Machine size: 1100mm x 650mm x 750mm high

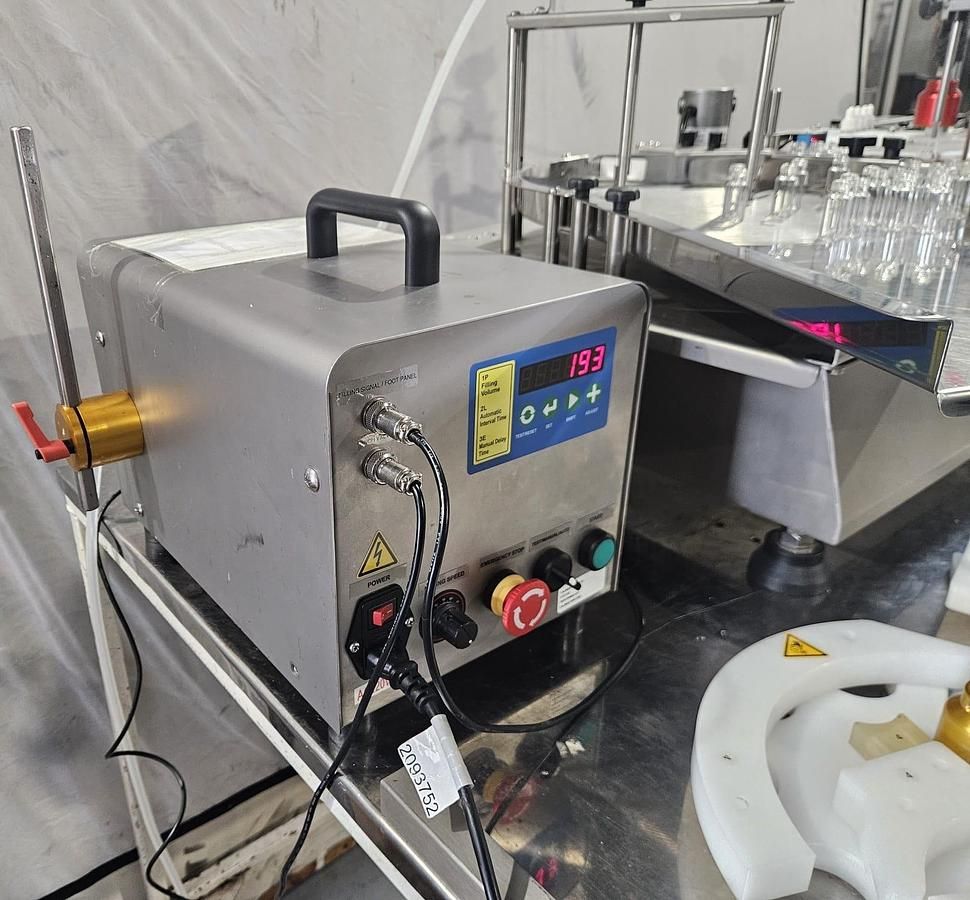

Peristaltic pump
Supply: 240V 1ph 6A
Peristaltic filling pump using 10mm OD silicon tubing 8mm ID
