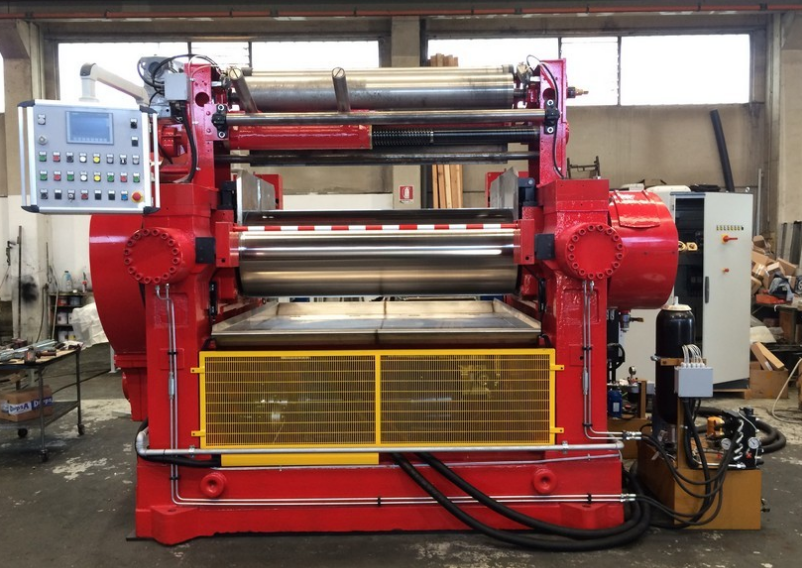

Meccaniche Moderne 650 x 2100 Rolling Mill

Rolling mill Meccaniche Moderne 650 x 2100 mm
Model Monoblock – motor under the rolls
- Roll diameter: 650 mm
- Roll length: 2100 mm
- Peripherally drilled rolls for water cooling
- hydraulic Gap adjustment: new
- Hydraulic unit: new
- Tilting guide plates
- Rollers mounted on bronze bearing bushings with corresponding lubrication system
- NEW hydraulic unit with DropSa distributors for lubricating the bronze bushings
- Rollers with new ball slewing rings, manufactured by Johnson
-Fluiten, for connection to the water circuit
- New AC motor: 160 kW - 400V - 50 Hz
- 2x NEW safety brakes for drive motor for emergency stop
- Stainless steel roller hopper for collecting the mixture
- Bi-directional belly bar for the safety system
- New control panel
- 7" Siemens touch panel, model KTP700 Basic, for monitoring machine parameters
- New control cabinet with PLC system, Siemens S7-1200
- New Siemens frequency converters, model G120,
for variable roller speed for both rollers
- Machine wiring: new
- Power cable approx. 5m from control cabinet to machine
- Emergency system and corresponding restoration
- Paintwork according to customer specifications
- Safety devices according to current standards EN 1417:2023
- EC Certificate and operating and maintenance instructions
(CE manual in English or German)
- electrical and hydraulic circuit diagram
- with 12-month warranty
- space requirement approx.: 4,800 x 2,600 mm

Additionally available at extra cost:
- Overhauled stock blender mounted on the machine for
homogenizing rubber compounds
- two new, adjustable pneumatic strip cutting blades for a rubber strip
