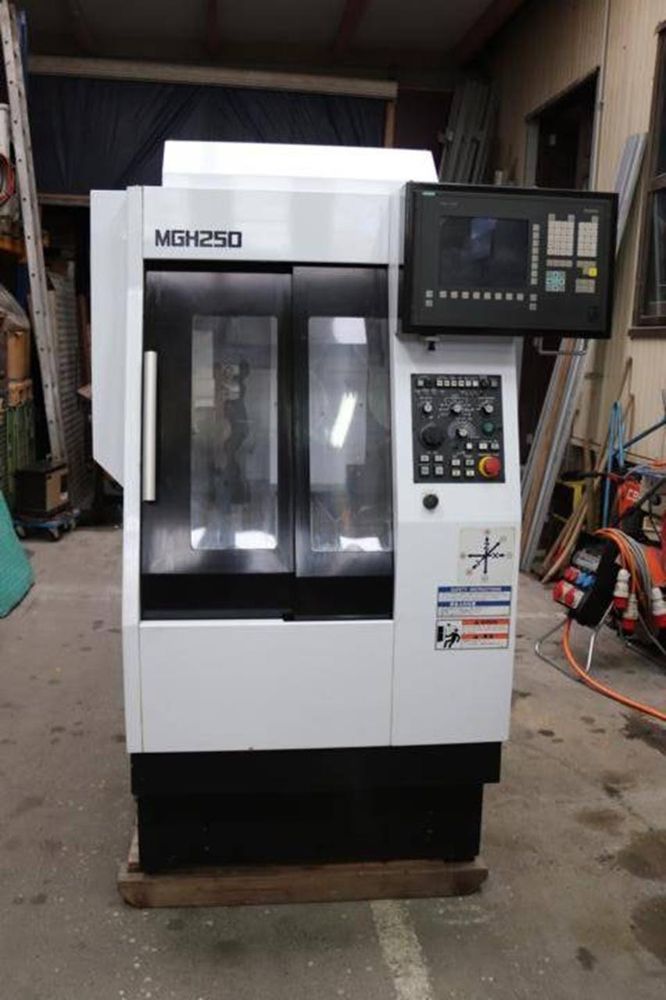

MECTRON MGH 250 3 Axis

Control system: SINUMERIK 840DSL
Length of the working table: 400 mm
Width of the working table: 300 mm
Maximum table load (evenly distributed): 80 kg
Maximum rotary speed of the vertical spindle: 30000 1/min
Minimum distance of the spindle from the table: 100 mm
Maximum distance of the spindle from the table: 350 mm
X-Axis travels: 250 mm
Y-Axis travels: 250 mm
Z-Axis travels: 250 mm
Maximum feed rate in X-axis: 36 m/min
Maximum feed rate in Y-axis: 36 m/min
Maximum feed rate in Z-axis: 36 m/min
Taper: HSK E 25
Number of axes: 3 pcs
Machine height: 1070 mm
Machine length: 1660 mm
Machine width: 1800 mm
Machine weight: 1850 kg
Equipment:
Cooler OilMatic C750
Transformer
