Medium Frequency Melting Furnace TGZ-70KW

For Sale: Metal Melting and Heating Furnace system (copper, steel, etc.)

A brand new, unopened induction furnace is available for sale, designed to heat and melt 100 kg of copper or 30 kilograms of steel per batch.

The maximum temperature the furnace can reach is 1800 °C.
The manufacturer’s warranty is valid for one year from the date the package is opened - warranty seals are placed on the packaging.

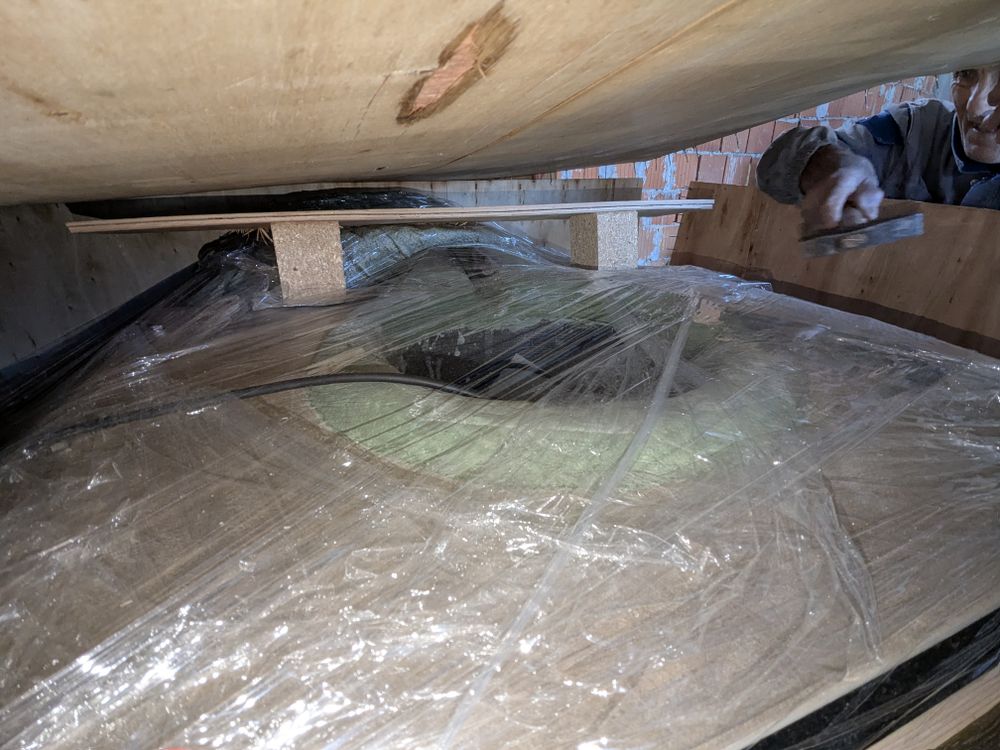

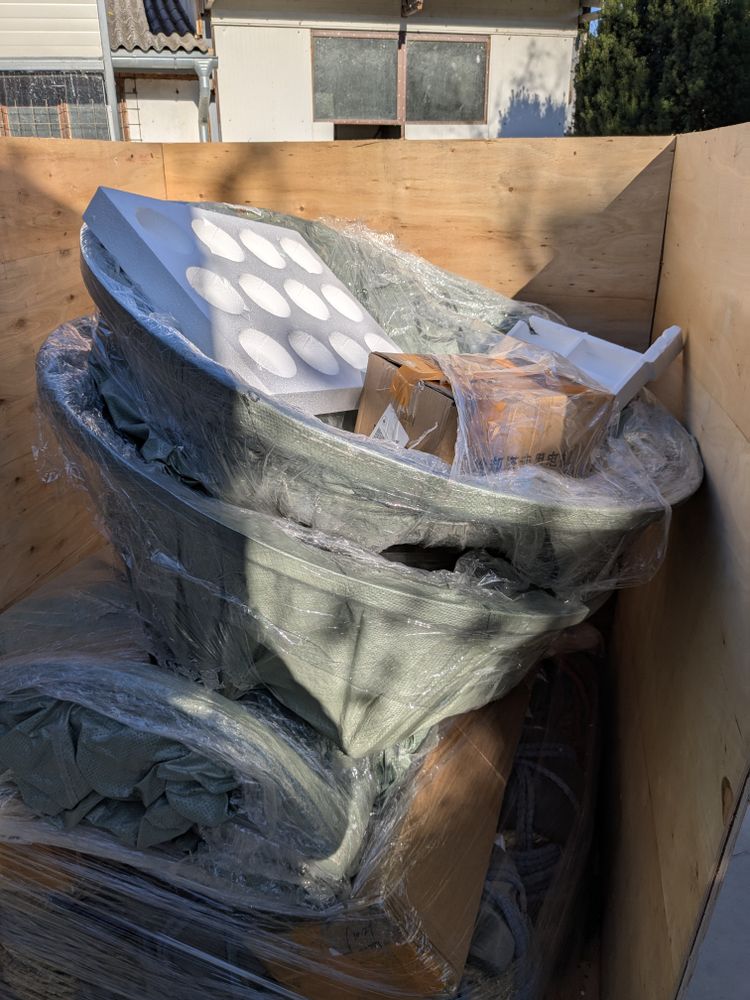

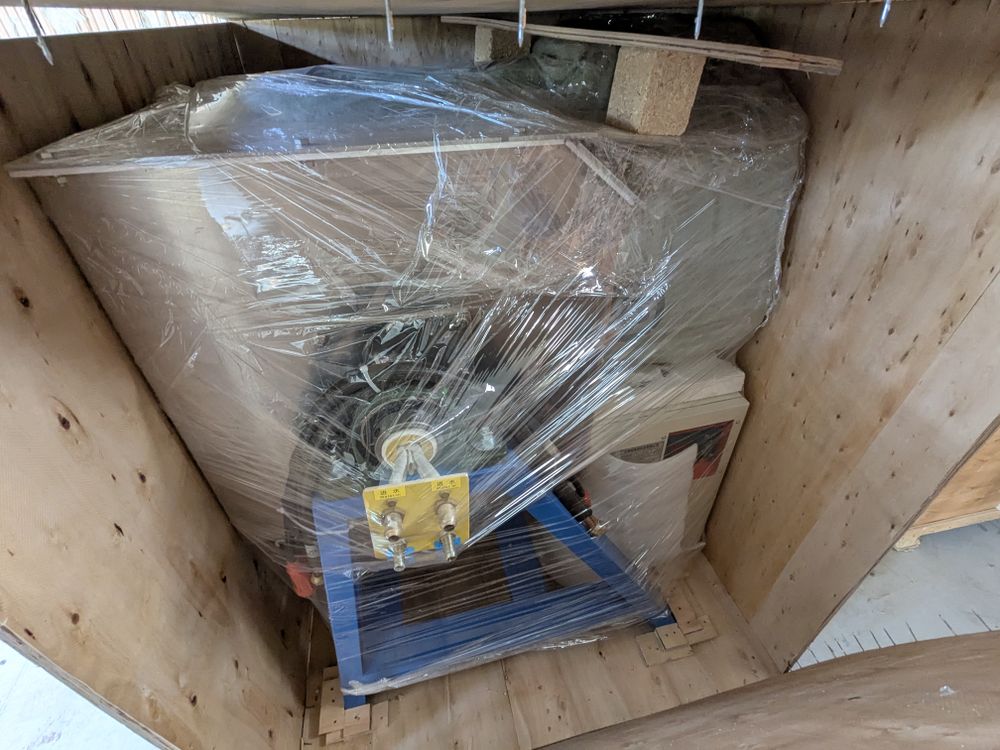

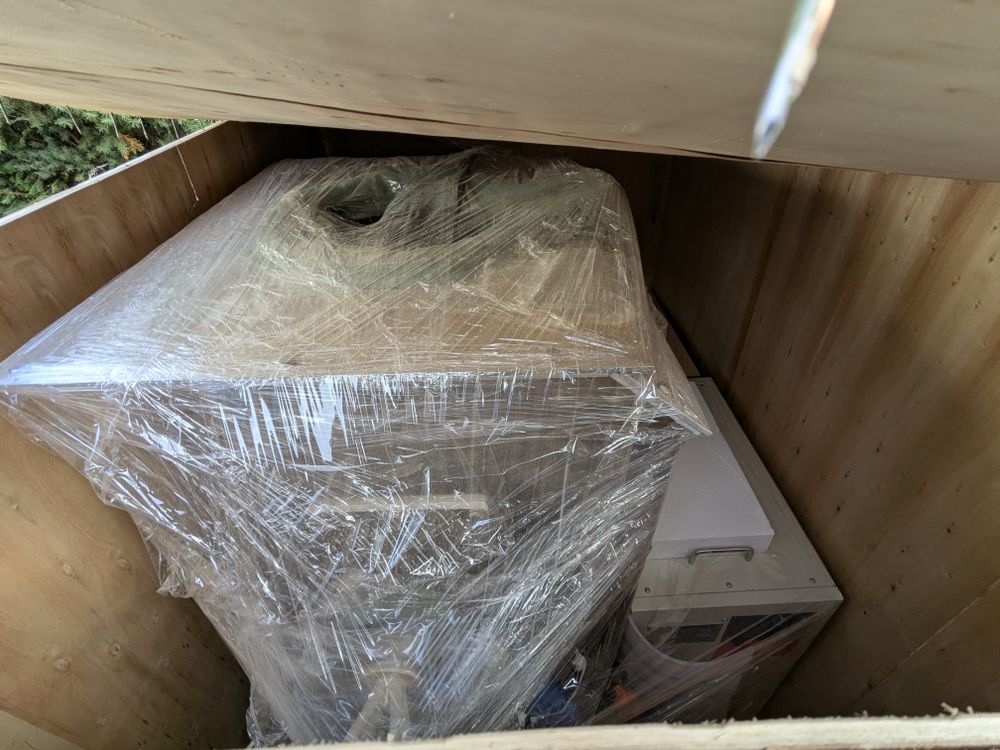

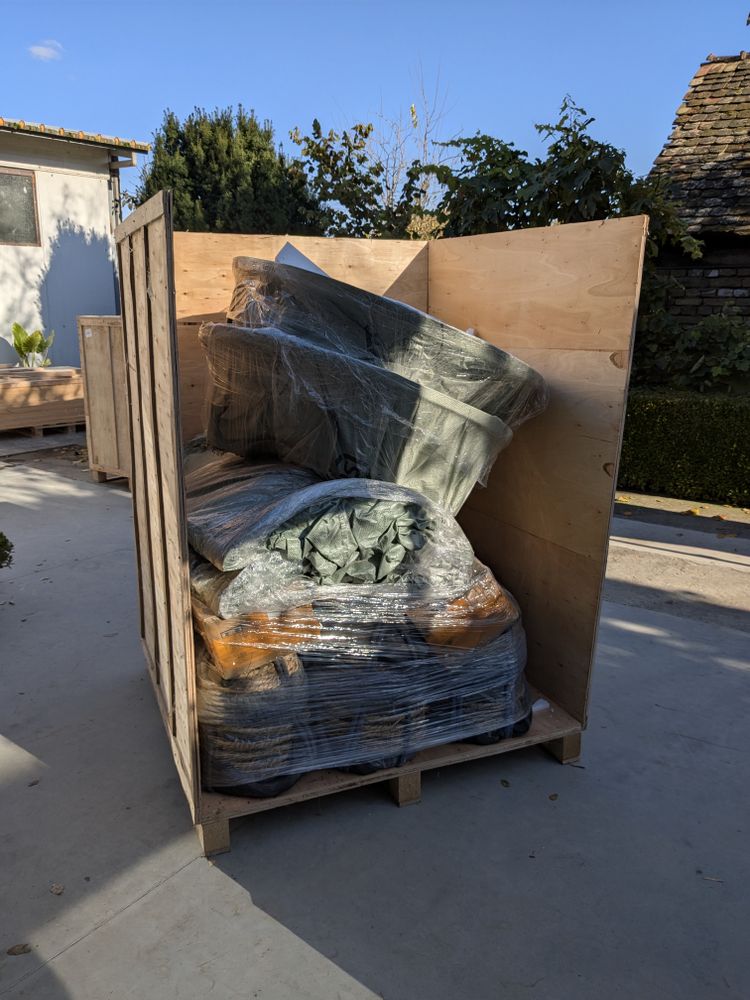

It comes with a 34-page user manual in English. The system is capable of continuous 24-hour operation. All components are packed in three wooden crates (see attached photos) with the following dimensions:

* Furnace: 1350 × 930 × 1150 mm
* Host: 640 × 350 × 600 mm
* Extension: 540 × 390 × 480 mm

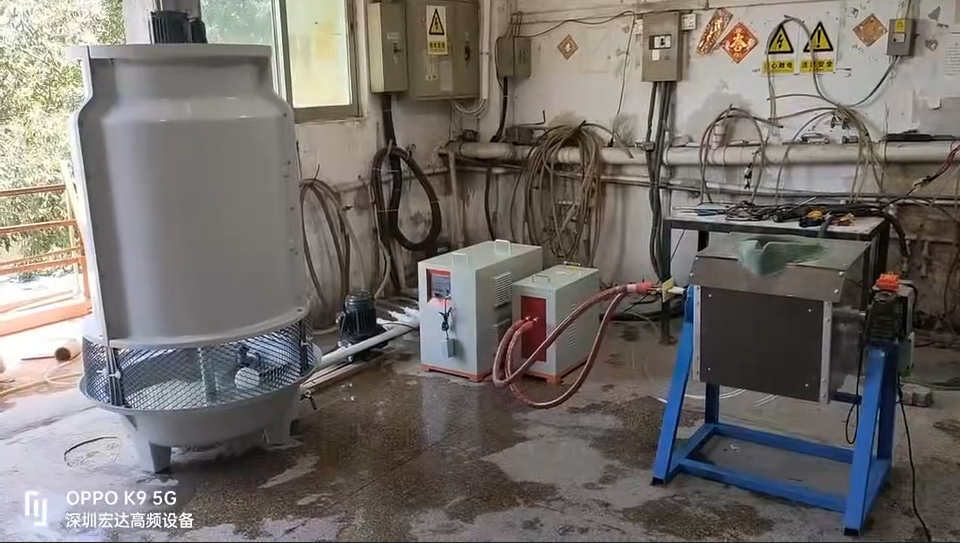

The system consists of:

1) Two melting furnace pots, 70 kW
2) Two medium-frequency power supplies
3) Two cooling systems (tower + water pump)
4) One control center
5) Twelve SiC melting pot inserts

Detailed technical specifications are available upon request for potential buyers.

Technical Characteristics:

* Input voltage: 380 V
* Frequency: 50 Hz to 60 Hz
* Maximum furnace temperature: 1800 °C
* Metal melting capacity per hour: 100 kg of copper or 30 kg of steel
* Designed for continuous 24-hour operation

Model name: Induction Medium-Frequency Metal Melting Furnace 70 kW
