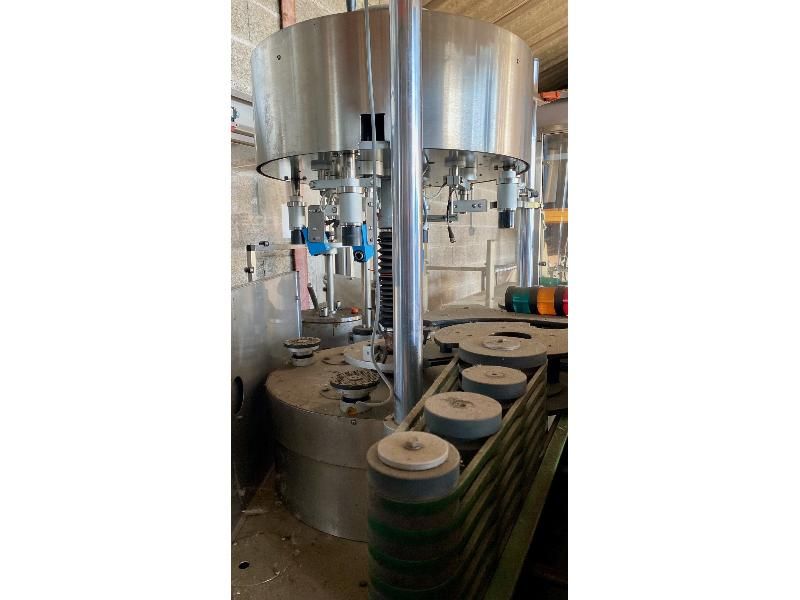

Mega STATIC, 4-HEAD ROTARY LABELING MACHINE

GENERAL CHARACTERISTICS
. Machine equipped with 1 cold glue labeling station
. with 2 gluing pallets.
. Fixed label magazine.
. Full label gluing.
. Bottle carousel with 4 rubber saddles.
. Saddles are moved by a stepper motor
. Cell for spot detection under the cap.
. Production: 2000 bottles/h.
. Equipped for labeling bottles
. Champagne type 75cl.
. Label 110 x 37 high + collar.
. Predisposition for CE station assembly.
TECHNICAL SPECIFICATIONS . .
. Robust welded steel frame
. with stainless steel guard.
. CRAM protection.
. Standard non-motorized conveyor 110×120.
. 82.5mm stainless steel conveyor chain.
. Endless wine inlet + block star
. Bottles controlled by cell.
. Anti-jamming cell at the outlet.
. Cell for label magazine triggering.
. Motorization regulated by variable speed drive
. Electronic, 380V power supply.
. Gear transmission.
. Carousel rotation/height adjustment
. of the tulip head plate with handwheel.
. Bottle orientation by cell on
. capsule spot.
. Labeling station mounted on slides
. Adjustable in 2 directions.
. Pallet rotation with double cams
. and oscillating movements.
. Fixed label magazine with double
. pushers.
. Spring-compensated gripper turret.
. Pneumatic pump for glue recycling.
. Complete air treatment unit.
. Electrical cabinet on frame.
. CE-compliant controls.
. CE-compliant machine protection.

OPTIONS INCLUDED .
. 80×106 dome label application tool.
. Adjustable glue heater.
