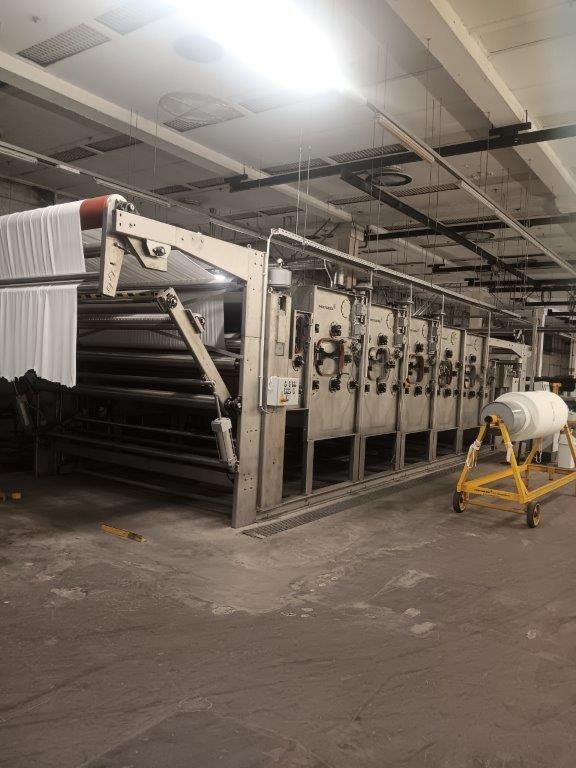

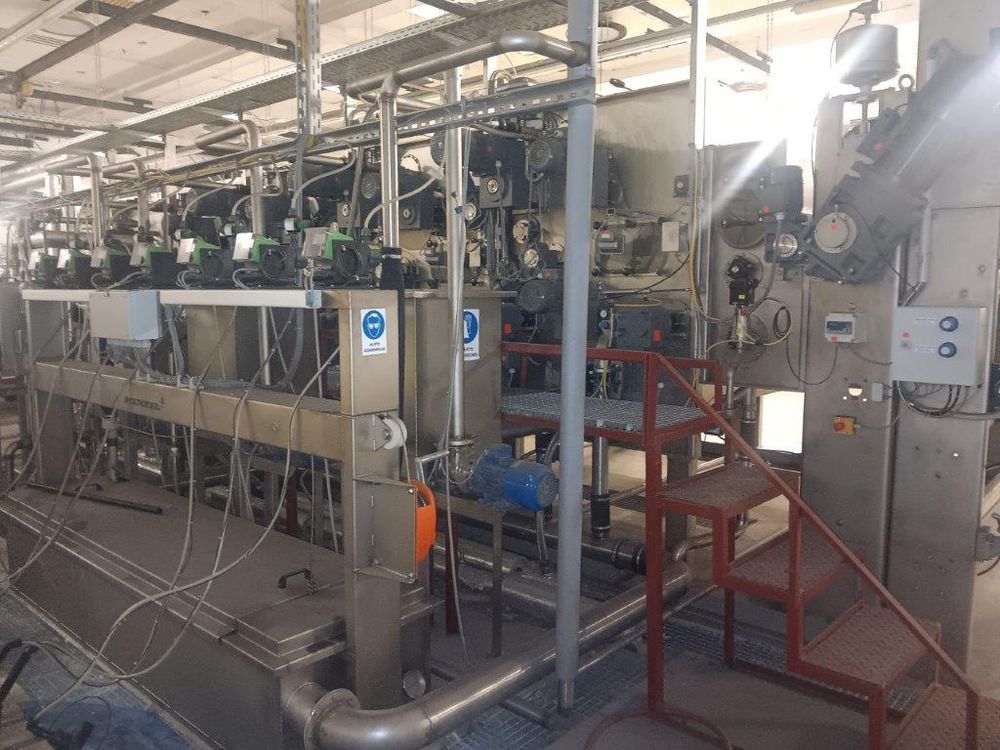

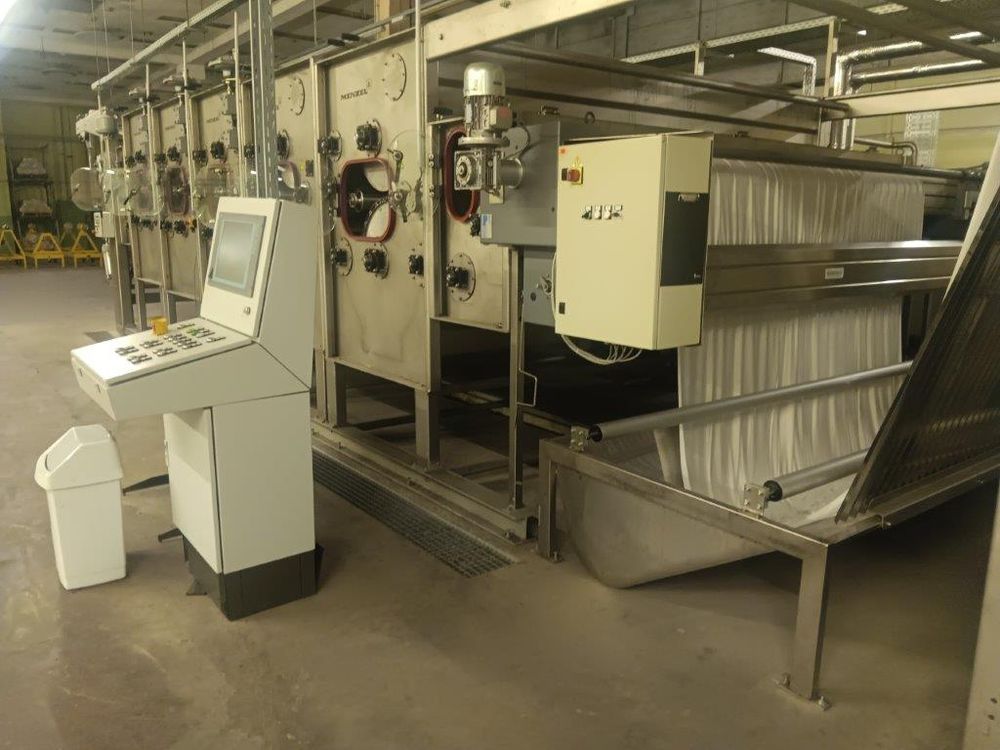

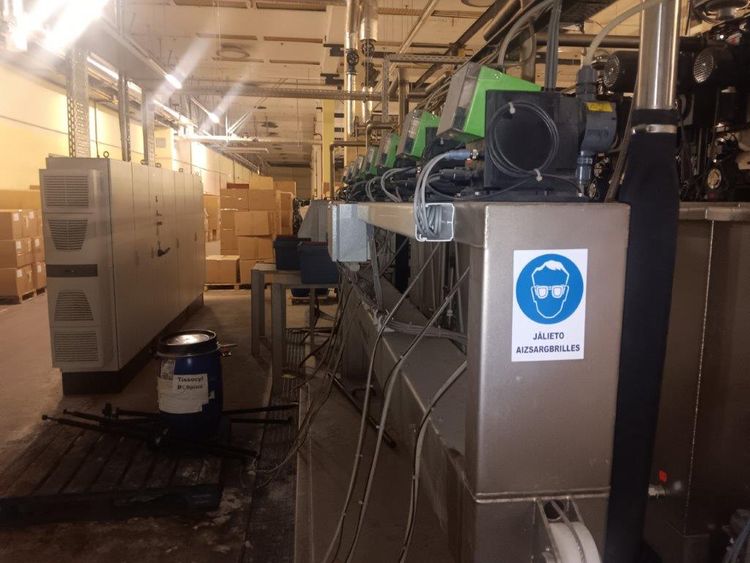

Menzel Washing
EUROPE (Central and Eastern)
working position
material width 2200-3200 mm
roller width 3400 mm
fabric weight 50-265 g/m2
production speed up to 40 m/min
Process: spunoil removing water based washing
Chemicals: oil-emulsifier, washing/wetting agent, alkali, acetic acid, for pH-neutralisation.
Steel grade
lateral frames AISI 304 (V2A)
parts in contact with media AISI 316 (V4A)
Batch diameter
unwinder 1400mm
winder 1800mm
voltage 230/400V 50Hz 3Ph.
steam pressure 4-6 bar
compressed air, dry - oilfree 6-7 bar
water pressure 2-3 bar
water consumption approx 5-8 l/kg, related to procedure
left operation side
right drive side
grey color of range
Fabric type: warp knit, lace, rachel, tricot
Material composition: 100% polyamide, 100% polyester, polyamide / spandex (Elasthane up to 30%)
