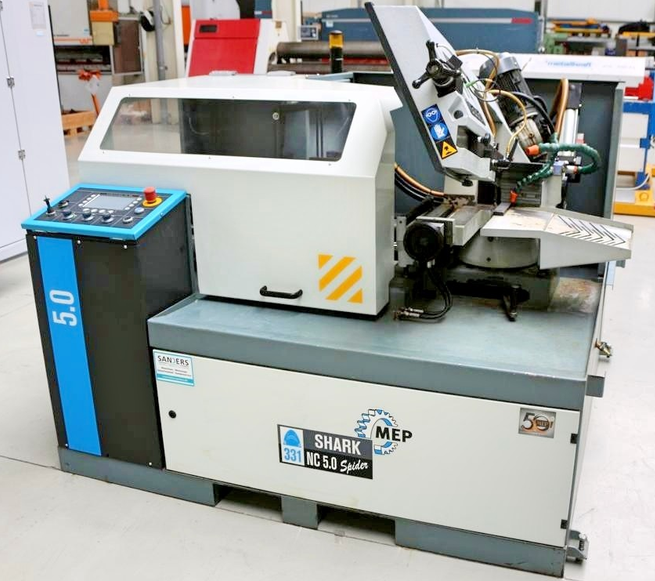

MEP SHARK 331-1 NC 5.0 SPIDER Band saw MEP CNC

Control: MEP CNC
Cutting Capacity Round 90°: 300 mm
Cutting Capacity Rectangle 90°: 330 x 260 mm
Cutting Capacity Square 90°: 260 x 260 mm
Cutting Capacity Round 45°: 260 mm
Cutting Capacity Rectangle 45°: 270 x 200 mm
Cutting Capacity Square 45°: 250 mm
Cutting Capacity Round 60°: 180 mm
Cutting Capacity Rectangle 60°: 170 x 170 mm
Cutting Capacity Square 60°: 180 mm
Automatic Feed Length: 9999.9 mm
Minimum Feed Length: 2.0 mm
Minimum Cutting Diameter: 5.0 mm
Band Speed: 15 - 100 m/min
Vise Opening: 340 mm
Saw Blade Dimensions: 3650 x 27 x 0.9 mm
Total Power Requirement: 2.2 kW
Machine Dimensions: 1800 x 1900 x 1750 mm
Machine Weight: 1240 kg
Electro-Hydraulic Fully Automatic Band Saw
Semi-Automatic Function
Mitre Cutting 0° to 60° Left
7" Touch Screen Display
10 Programmable Cutting Programs
Maximum 9999 Pieces per Program
Stepper Motor Material Feed
Ball Screw Feed System
Single Feed Stroke: 600 mm
Positioning Accuracy: ±0.1 mm per 600 mm
Protected Feeder with Safety Limit Switch
Adjustable Cutting Feed with Digital Display
Joystick Control for Saw Head and Feeder Positioning
Automatic Cut Start Detection
Cast Steel Guide Wheels
Blade Tension Control and Display
Carbide Blade Guides
Automatic Cutting Load Monitoring
Quick-Adjust Vise
Interchangeable Clamping Jaws
Interchangeable Stop Jaws
Extendable Chip Tray
Coolant Tank
2 Electric Pumps for Blade Lubrication and Cooling
Coolant Cleaning Gun
Chip Removal Brush
Operating Instructions Included
