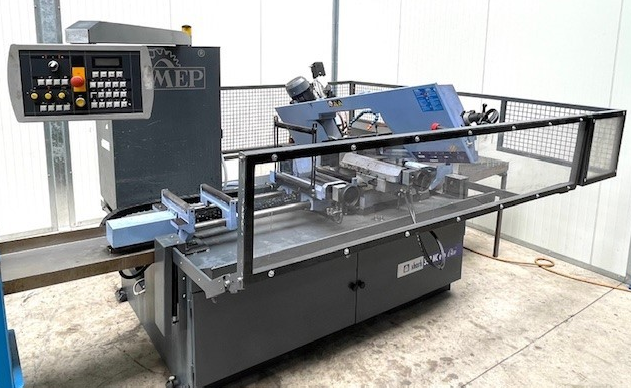

MEP Shark 332 NC evo Band Saw SemiAutomatic

MEP Shark 332 NC evo
2010

Cutting diameter 300 mm
Saw band length 3320 mm
Cutting width 330 mm
Saw band dimensions 3320 x 27 x 0.9 mm
Cutting speed 15 + 100 m/min
Cutting range round 300 mm
Cutting range square 260 mm
Cutting capacity 330 x 260 mm
Capacity at 45° round 180 mm
Capacity at 45° square 170 x 170 mm
Capacity at 45° flat 170 mm
Capacity at 60° left 260 mm / right 200 mm
Capacity at 60° flat left 270 x 200 mm / right 200 x 160 mm
Capacity at 60° round left 250 mm / right 180 mm
Drive power 2.2 kW
Machine weight 1060 kg
Machine dimensions 2300 x 1945 x 2000 mm
CutControlSystem for automatic feed regulation and cut-off
Manual and automatic cutting modes
Infinitely adjustable lowering speed
Adjustable cutting pressure via spring compensation
Cast steel saw frame
Indexing turntable at 0° / 45° / 60°
Vice with quick adjustment
Carbide band guides
Adjustable cast steel deflection discs
Hydraulic saw band tension with display
Tension gauge (900 kg)
Control panel with all functions
Base frame with lockable door and removable coolant tray
Electric coolant pump
Chip removal brush
