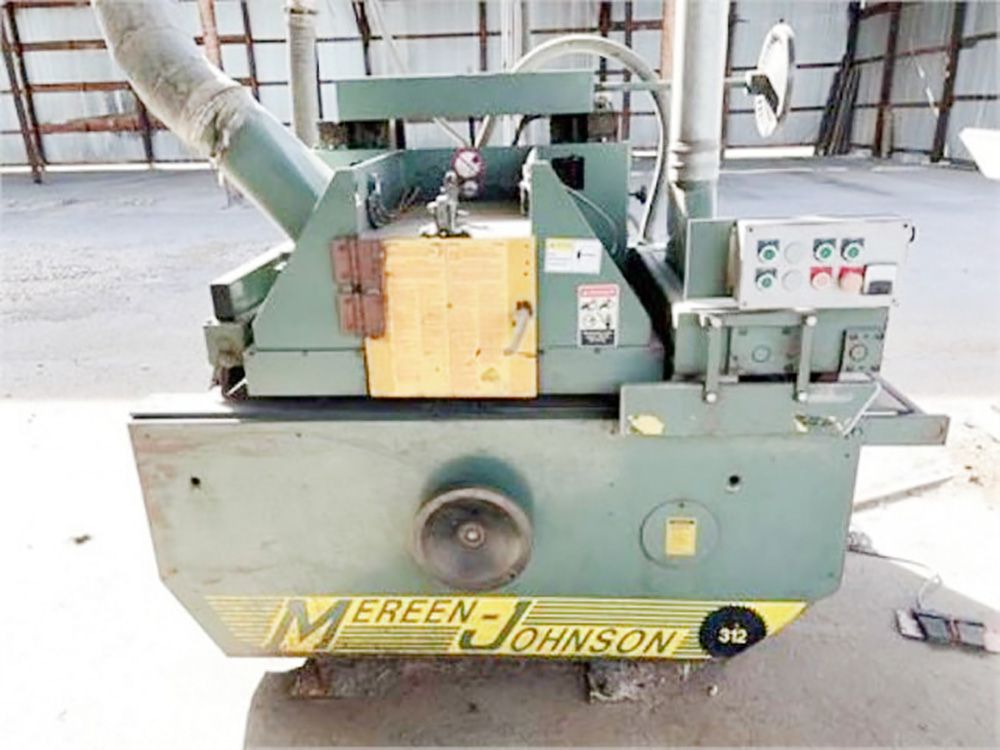

Mereen Johnson 312-DC Dip Chain Gang Rip Saw

As Taken From Service.
All the rubber slats have been replaced with new ones.
Voltage: 480 V, 60Cy, 3 Phase
12" Arbor capacity, 14" max. diameter tooling, 3-1/2" maximum thickness, 30" minimum length for glue joint accuracy & 22" minimum for busting only; 6" throat.
Equipped With: 50 HP - 3,600 RPM TEFC Direct drive motor, arbor with disc brake & load meter, arbor lockout on the access door.

Feed & Chain:
3 HP variable feed speed from 30 - 150 FPM with adjustable jam protection
M-J :Posi-Feed" dip bed carried on 5" pitch hardened double V chain, "Quad Life" hardened dip cams,
extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips, automatic chain oiler with low level shutoff.

Complete With: (4) 3" diameter air loaded overhead pressure rolls; full width segmented maple, spring loaded overhead pressure shoe,
pressure rolls & pressure shoe unit adjust with scale & pointer thickness reference; anti-kickback fingers.
Includes (1) saw sleeve and spacers.
