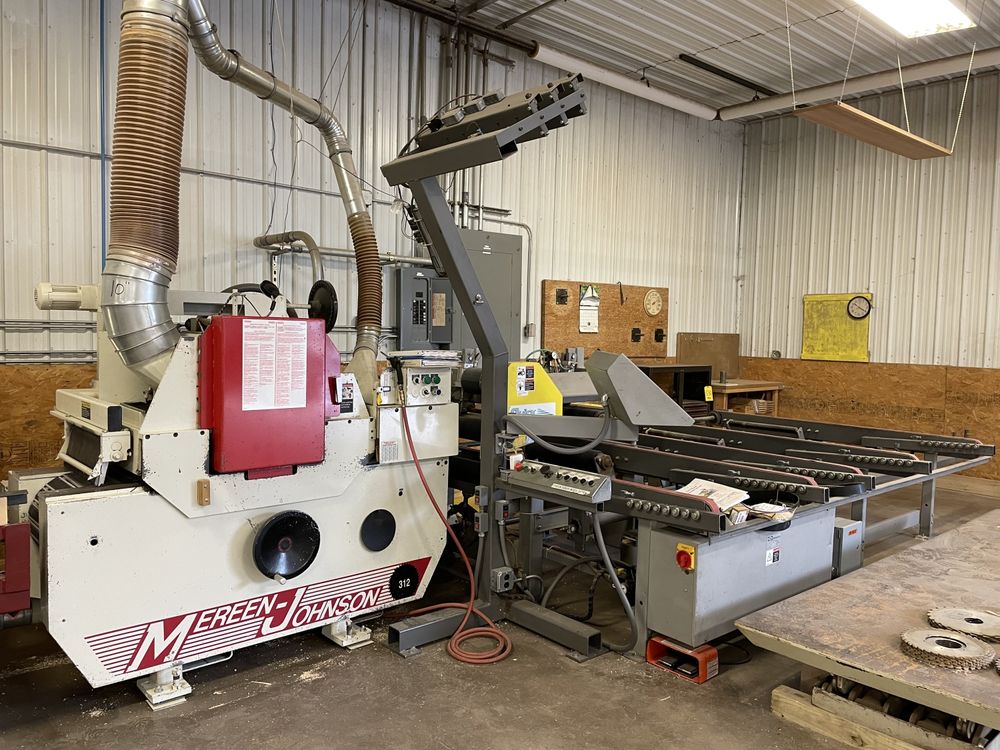

Mereen Johnson 312-DC/SR2 "Select-A-Rip" Multiple Rip Saw

Two "Select-A-Rip" Shifting Blade Assemblies w/ Moving Laser Guides
12" Arbor Space
2-3/4" Max. Thickness using 14" Dia. Tooling
6" Throat
50 HP 3600 RPM TEFC Mereen-Johnson Direct Arbor Drive
POSI-FEED Dip Bed Carried on Precision Mereen-Johnson 5" Pitch
DOUBLE-VEE Feed Chain, Contoured Hardened Dip Cams, Extruded Structural Aluminum Feed Bed Slats with Replaceable Steel Backed Rubber Insert Strips
Year: 2010
230v, 3ph

Cameron Automation Model 34H-MI Quick Rip and Automated Optic-Rip Feed System - 12' Capacity
Fence-Less Gang Rip Saw Optimizer
Five Lateral Feed Belts Accelerate the Board past Several Sensors which Measure the Profile Every Foot for the Length of the Board
Belts then Position the Board Under the Laser Lights, which Mimick the Arbor Set-Up on the Rip Saw
Operator is Presented with the Optimum Rip Combination Based on the Boards Measurements
Operator is Able to Over-Ride the Computers Chosen Cut (Positioning or Skew)
Pinch Rollers Feed the Board into the Saw
Single Operator Loads and Defects
Can feed 8-10+ Boards/Minute
Five Rubber Lateral Feed Belts
One Driven Top Pinch Roll (3/4 HP Motor)
Top & Bottom Idle Rollers
220v, 3ph
Push-Button Controls
