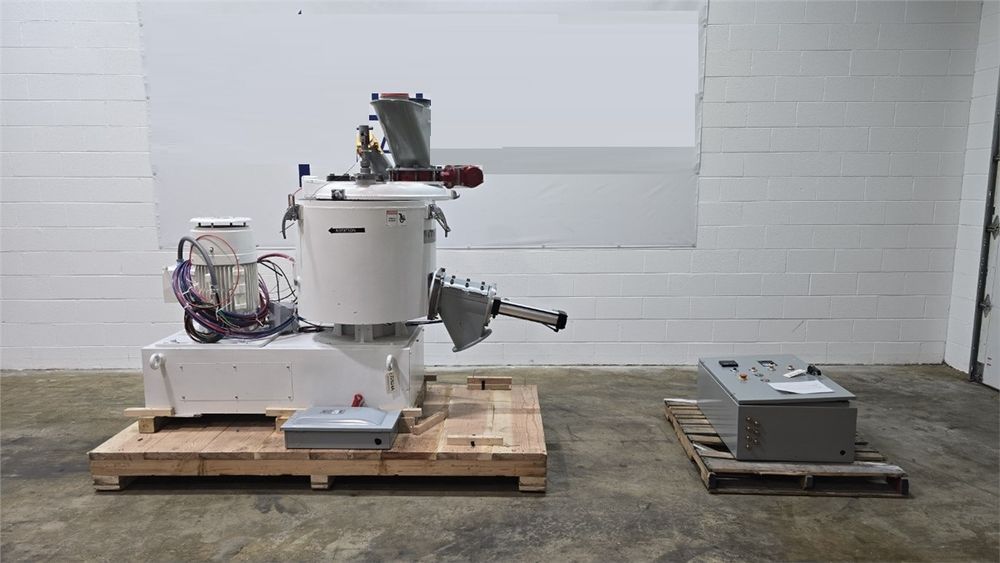

Henschel, Merlin FM 250US

250 Liter Merlin/Henschel Mixer, Model FM 250US, 40 Liter Water Jacket, 30 HP
200 Liters Working Capacity Per Manufacturer
225 LB Batch Size
Bowl Max Working Temp: 175 ºC
Jacket Max Working Temp: 90 ºC
Jacket Max Working Pressure: 70 PSI
30 HP Siemens PE 21 Plus Premium Efficiency AC Motor, Frame: 286TD
1765 RPM
460/3/60, 35A
Nema Design B
Control Panel Consists Of:
25 HP FactoryMation FMX "Tough Drive" Series TD400 Drive, IP 20 Drive Enclosure
Input: 460/3/60, 48A
Output: 0-460/3/0-599, 40A
Digital Automation Direct SOLO 9696 Temp Controller, Toggle Control For Cooling On/OFF/Auto
Toggle Open/Close Controls For The Following: The Lid, Inlet, Outlet
Start/Stop & E-Stop Buttons
Vortex Flow Pattern, With Options: Removable Deflector And Swing-Away Discharge Gate
Approx. Mixer Dimensions: 102" L x 44" W x 72" H
Approx. Panel Dimensions: 24" L x 16" W x 36" H
