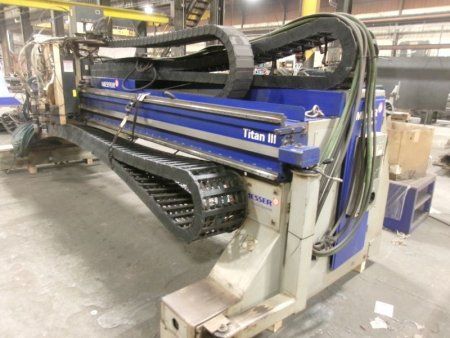

Messer TITAN III CNC CONTROL

Model: Titan III
Max. Table Width: 160"
Machine Rail Guage: 177.50"
Machine Working Width: 257.50"
Overall Machine Clearance: 293.50"
Machine Motion Accuracy: 0.018" in 72" of travel
Machine Motion Repeatability: 0.005" in 72" of travel
Material Cutting Capability: 26 gauge to 2" plate thickness
Cut Material: Mild Steel, Stainless Steel, Aluminum
Contouring Speeds: up to 400 ipm
Positioning Speeds: up to 1,700 ipm
Power Track in both axes
Volts: 480/3/60

Dust Collector
Make: Donaldson
Model: Gold Series GSX32
Date Manufactured: September 2022
Air Volume/Pressure: 13,000 c.f.m/13.00" w.g.
Motor HP/FLA/RPM: 50/56/3,540
Motor Voltage/HZ ph: 460/60/3
Dust Type: Plasma, Fumes
