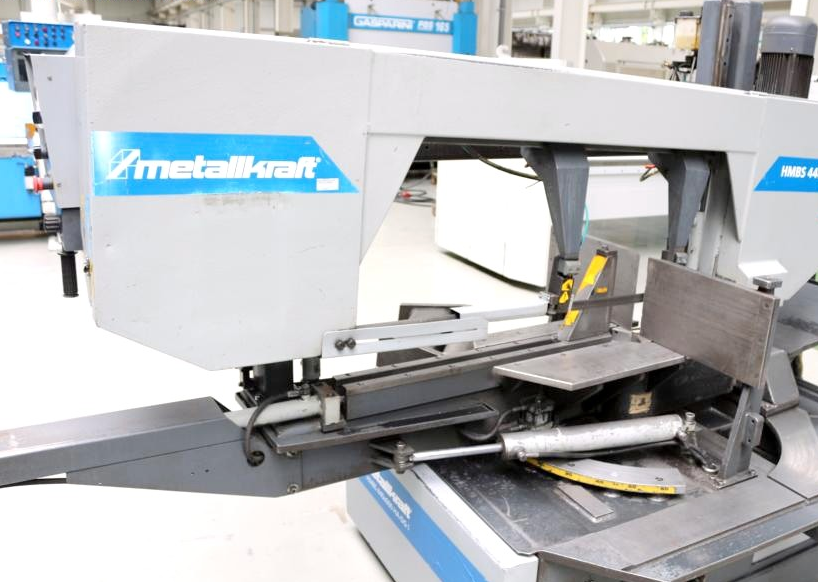

METALLKRAFT HMBS 440 x 600 HA DG-F Band Saw SemiAutomatic

Cutting diameter: 450 mm
Saw band length: 5720 mm
Cutting capacity 90° (square): 600 x 440 mm
Cutting capacity 45° (round): 450 mm
Cutting capacity 45° (square): 580 x 440 mm
Cutting capacity 60° (round): 390 mm
Cutting capacity 60° (square): 390 x 440 mm
Saw blade speed range: 20–100 m/min
Saw blade dimensions: 5720 x 34 x 1.1 mm

Vice width: 605 mm
Material table height: 830 mm
Power requirement: 4.0 kW
Machine dimensions (L x W x H): 3280 x 1480 x 2010 mm
Machine weight: 1605 kg
Semi-automatic electro-hydraulic band saw
Miter cutting range: -60° to +60°
Cast iron pulleys (diameter 500 mm)
Powered blade cleaning brush
Hydraulic system for full operation
Coolant system on blade guides
Adjustable carbide blade guide plates
Oil-lubricated worm gear drive
Three-phase motor with overload protection
Heavy-duty steel frame
Two-column guide system
Linear guides on both columns
Cutting height limiter
Vise jaw with long-stroke cylinder
Operating instructions included (PDF)
