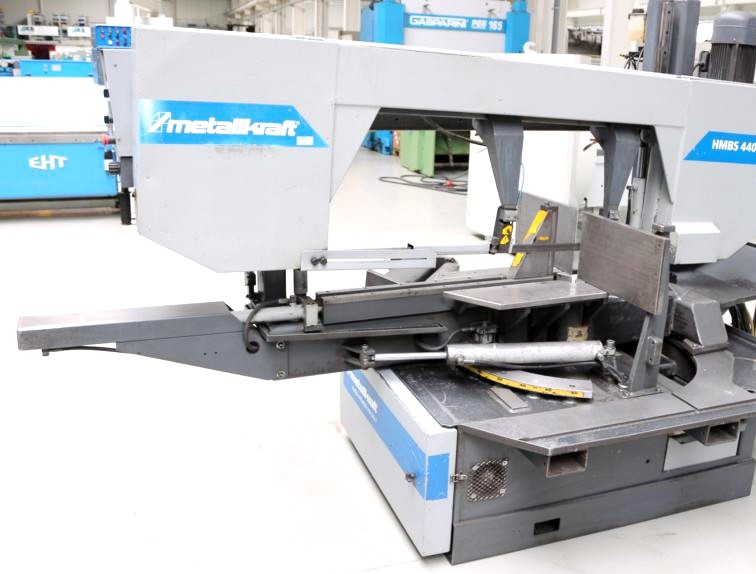

METALLKRAFT HMBS 440 x 600 HA DG-F Band Saw SemiAutomatic

Cutting diameter: 450 mm
Saw band length: 5720 mm
Cutting capacity 90° square: 600 x 440 mm
Cutting capacity 45° round: 450 mm
Cutting capacity 45° square: 580 x 440 mm
Cutting capacity 60° round: 390 mm
Cutting capacity 60° square: 390 x 440 mm
Band speed range: 20–100 m/min
Saw band dimensions: 5720 x 34 x 1.1 mm
Vise: 605 mm
Material table height: 830 mm
Total power requirement: 4.0 kW
Machine weight: 1605 kg
Machine dimensions (LxWxH): 3280 x 1480 x 2010 mm

Semi-automatic electro-hydraulic band saw
Miter cuts -60° left to +60° right
Designed for industrial use
Suitable for cutting solid material
Stable and robust construction
Cast iron pulleys diameter: 500 mm
Continuously adjustable saw blade speed
Microswitches for saw arm top and bottom positions
Powered cleaning brush
Fully hydraulic system control
Cooling system on saw blade guides
Blade guide with adjustable carbide plates
Worm gear drive, oil-lubricated, low-maintenance
Three-phase motor
Motor with overload protection
Solid steel machine frame
Two-column guide
Linear guides on both columns
Cutting height limiter
Vise jaw with long-stroke cylinder
Operating instructions included (German, PDF)
