Metora VMB 305 DS

Weight approx. 2600 kg
Cutting area approx. 300 x 300 mm
Table height 850 mm
Power approx. 4 + 1.5 kW
Saw blade approx. 550 mm
Feed rate unknown

Machine Description:

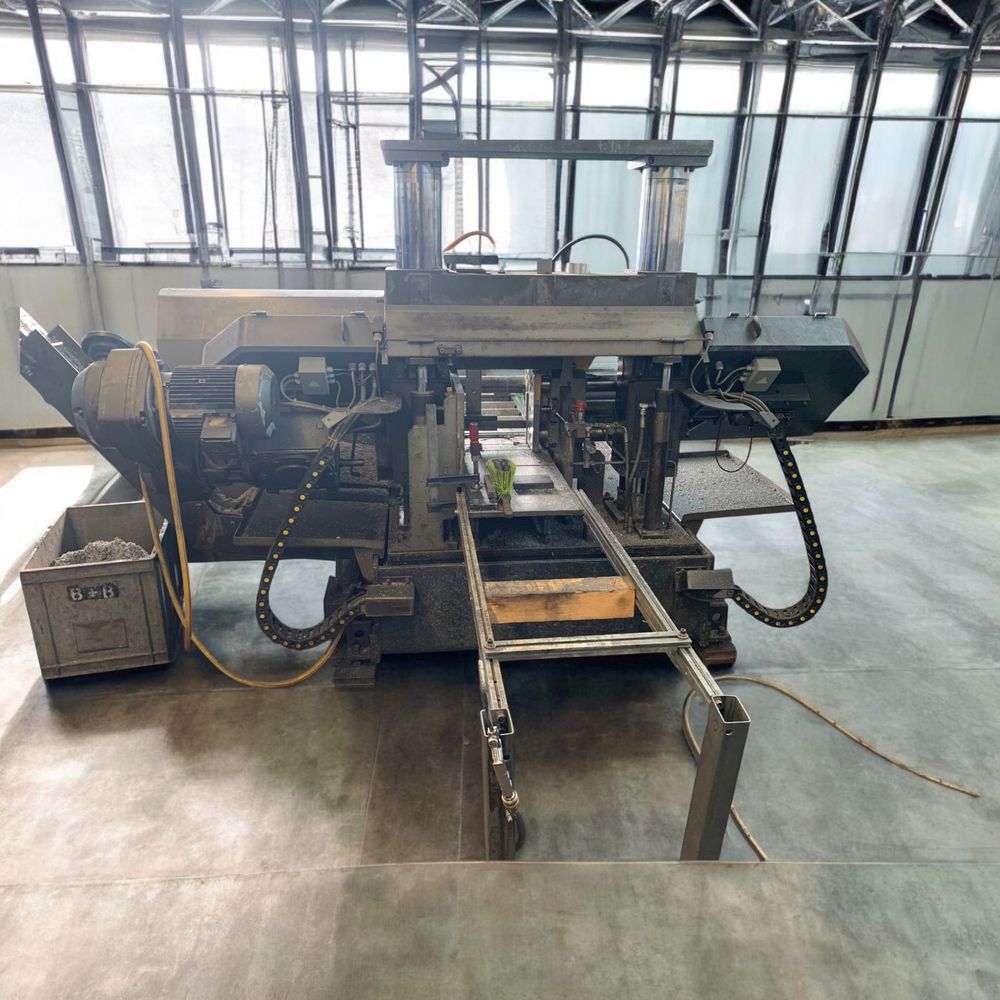

Column-Guided Fully Automatic Band Saw
For 90° Cuts Only
Cutting Capacity: Round Ø 300 mm
Square 305 x 305 mm
Saw Blade Speed: Approx. 25-108 m/min. Continuously variable
Material infeed height approx. 570 mm
Hydraulic drive power 1.5 kW
Saw motor drive power 4 kW
Power supply 400 V, 50 Hz
Blade dimensions approx. 4900 x 41/32 x 1.3 mm

- Fully hydraulic band saw with two-column design
- Hydraulic saw frame lowering with continuously adjustable cutting pressure
- Continuously adjustable lowering speed
- Hydraulic vice clamping, bundle clamping
- Hydraulic power unit integrated in the machine base
- Coolant system with cooling lubricant pump for water emulsion
- With chip conveyor for removing the cutting chips (not shown)
