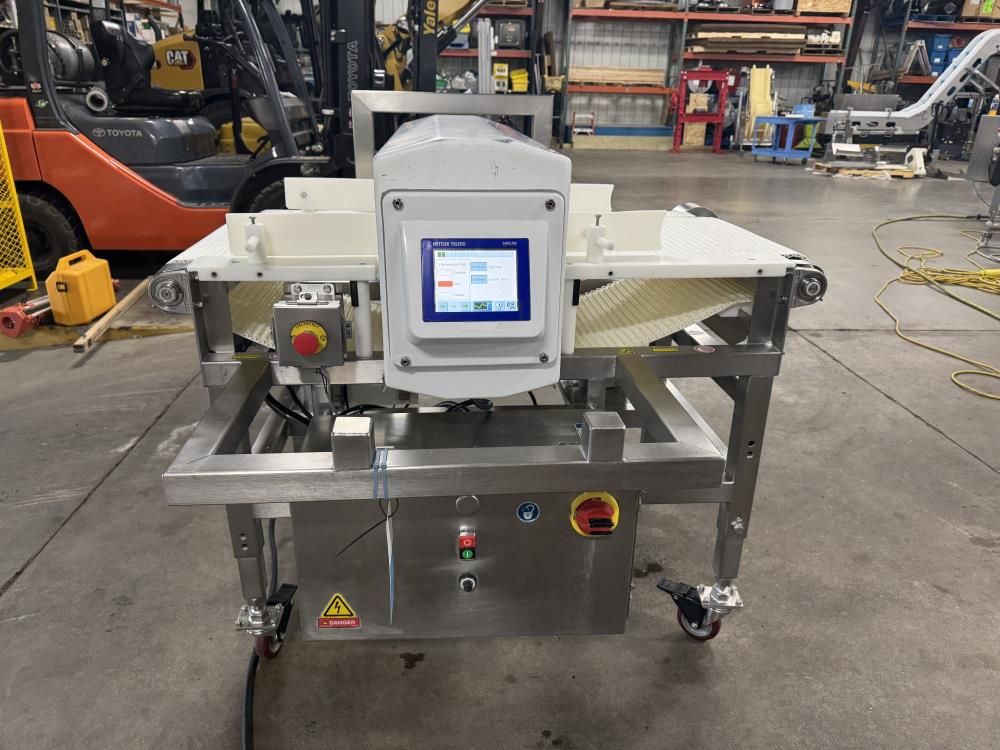

Mettler Toledo Metal Detector with Conveyor

Model: Signature Touch 300
Aperture: 19 5/8 in. wide x 5 in. tall
Conveyor clearance: 4 inches
Alarm with non-gated reject system

Conveyor System
Model: SL2000
Belt: White plastic interlocking
Dimensions: 50 in. long x 18 in. wide x 36 in. tall
Minimum Belt Speed: 2.328 seconds per foot
Maximum Belt Speed: 0.625 seconds per foot
Stainless steel tubular frame
Locking casters with adjustable height

Controls & Electronics
Stainless steel control panel
Schneider Electric variable speed controller
Start, stop, and e-stop functions
Stainless steel washdown-rated motor

Electrical Requirements
110 Volt, 1 Phase, 60 Hz, 15 Amp
Performance Verification

Unit was shop tested and verified using the following sample sizes:
Ferrous: 1.5 mm
Non-Ferrous: 1.5 mm
Stainless Steel 316: 1.5 mm

Overall Dimensions & Weight
51 in. long x 50 in. wide x 47 in. tall
Approximate weight: 699 lbs
