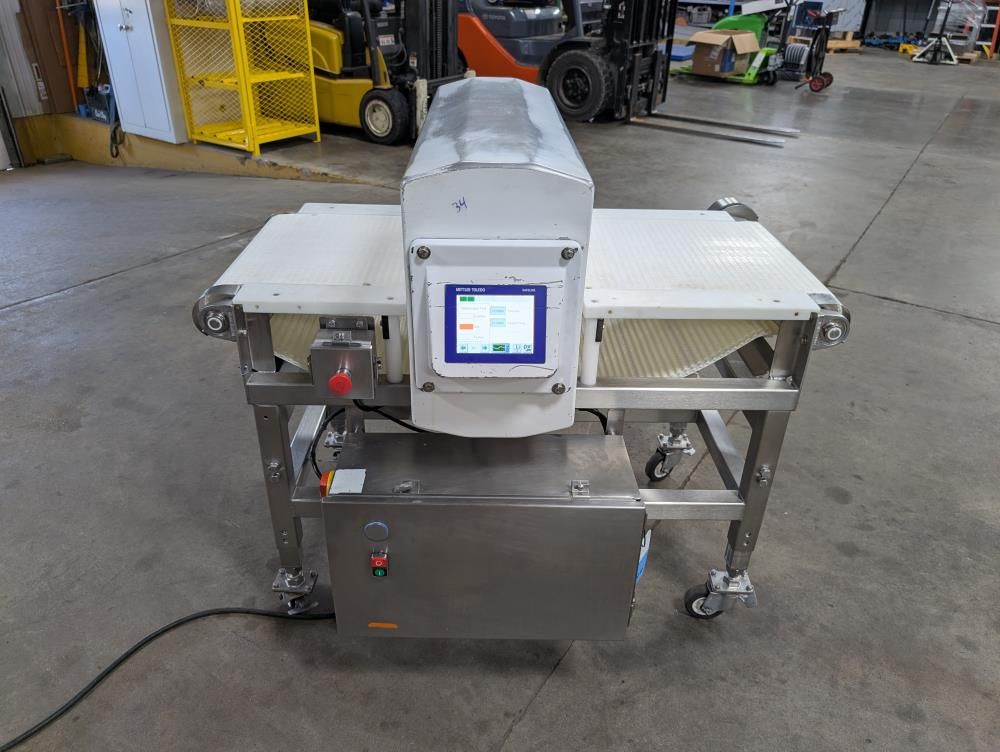

Mettler Toledo Metal Detector

with Conveyor
Head Type: R/RZ Series RAD 300
Aperture: 19 3/4 in. wide x 7 7/8 in. tall
Conveyor clearance: 6 7/8 inches
Alarm with non-gated reject system

Conveyor System
Model: SL2000
Belt: White plastic interlocking
Altivar Variable Frequency Drive
Dimensions: 50.25 in. long x 18 in. wide x 33.75 in. tall
Stainless steel tubular frame
Locking casters with adjustable height

Controls & Electronics
Stainless steel control panel
Schneider Electric variable speed controller
Start, stop, and e-stop functions
Stainless steel washdown-rated motor

Electrical Requirements
110 Volt, 1 Phase, 60 Hz, 15 Amp

Performance Verification
Unit was shop tested and verified using the following sample sizes:
Ferrous: 2.0 mm
Non-Ferrous: 2.0 mm
Stainless Steel 316: 2.0 mm

Overall Dimensions & Weight
52 in. long x 40 in. wide x 46 in. tall
Approximate weight: 699 lbs
