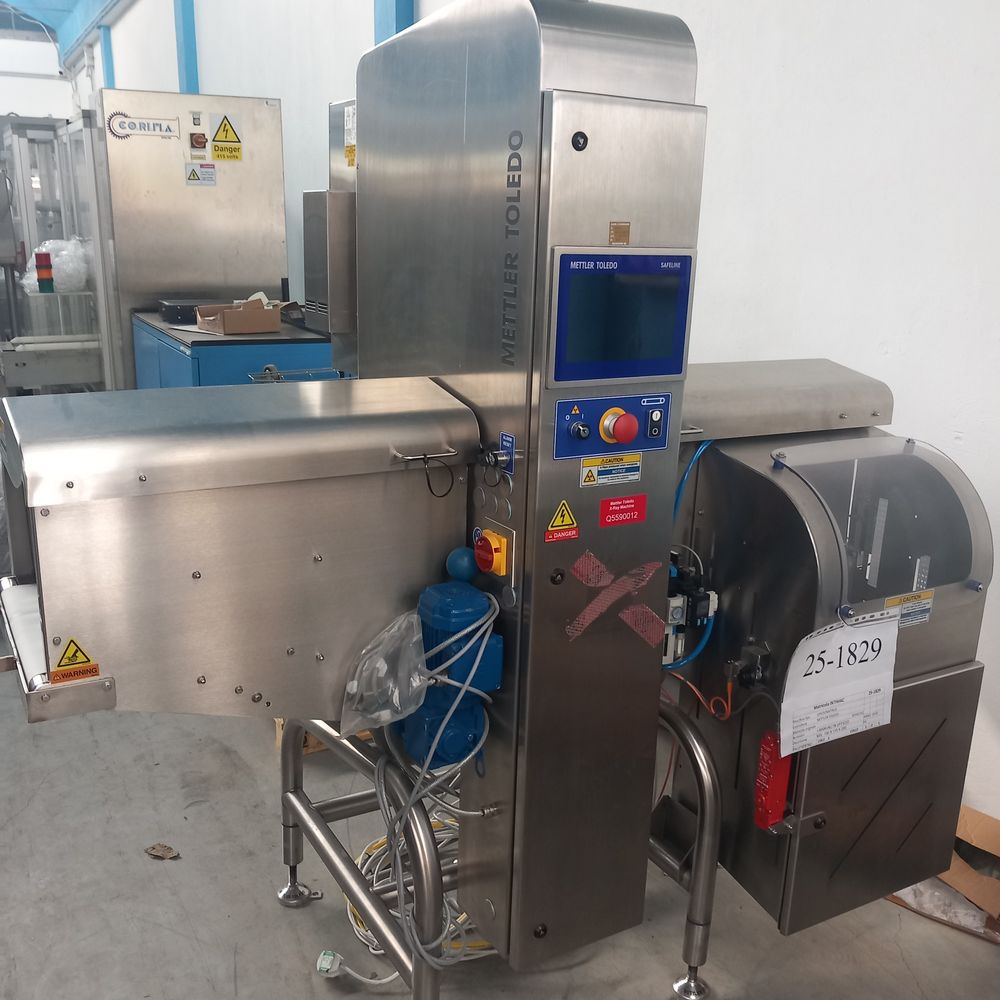

Mettler Toledo X34 X-ray Inspection Machines

for Ampoules and Vials
IP Rating: IP65
Compatible Software: ProdX,
Connectivity, Ethernet, OPC UA, USB
Inspection Solution: X-ray Inspection
Max Product Width: 380 mm
HMI: 10.1" Touchscreen
Packaging Type: Cardboard, Metalized Film, Plastic
Cooling Method: Air Conditioner
Product Flow: Conveyor
X-ray Beams: Single vertical beam
X-ray Generator: 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube
Inspection Application: Clip Detection, Completeness Check, Contamination Detection, Fill level Check, Integrity Check, Mass Control, Product-Trapped in Seal
Product Characteristic: Small-Medium Packages
Industry: Chemical, Food & Beverage, Pharma & Biotech
Max Product Height: 200 mm
X-ray Detector: Single Energy, HiQiQ2 technology
Max Product Weight: 25 kg
X-ray Emissions: < 1uSv/hr
Max Line Speed: 60 m/min
Max Throughput: 300 ppm
Diode Size: 0.4 mm
