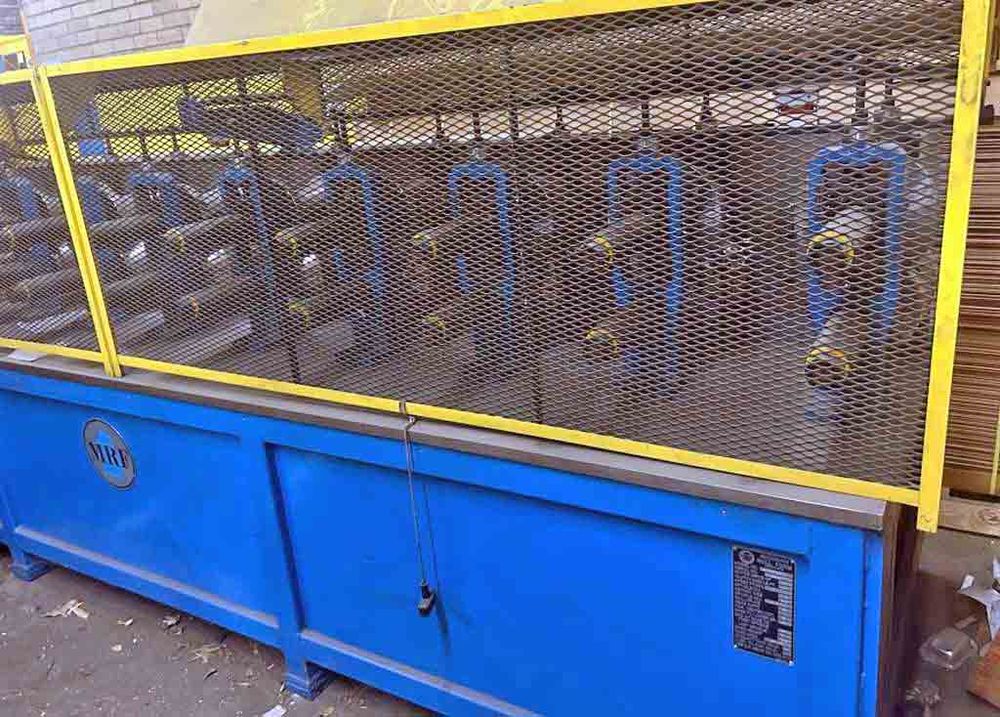

Michigan 19 STANDS 20.00" x 1.50" ROLLFORMING LINE

Uncoiler capacity: 6000 lb
Coil ID range: 16" – 20"
Max stock width: 16"
Max speed: 100 FPM

Number of stands: 19
Spindle diameter: 1.500"
Second pass spindle diameter: 2.000"
Max material thickness: 0.048"
Roll space: 20"
Horizontal center distance: 15"
Vertical adjustment range: 6.25" – 7.75"
Drive motor: 20 HP DC
Operating speed: 25 – 35 FPM
Max line speed: 250 FPM

Press capacity: 18 tons
Max die width: 18.75"
Stroke: 3"
Cross adjustment: 4"
Height adjustment: 4"
Motor power: 5 HP
Line speed range: 25 – 35 FPM

Power requirement: 480V / 3 / 60 Hz
Manual mandrel expansion
Pneumatic drag brake
Variable speed drive with dancer arm
Entry feed vise
Hardened and ground gears
Timken taper roller bearings
Micrometer adjustment screws
Dial indicator adjustment
Manual grease lubrication
Perimeter guarding with interlocks
Electrical control system with disconnect
Automatic press lubrication system
Mitsubishi PLC control
Closed loop tachometer feedback
Operator interface with production counter
Quick die change system
Air clutch and brake system
