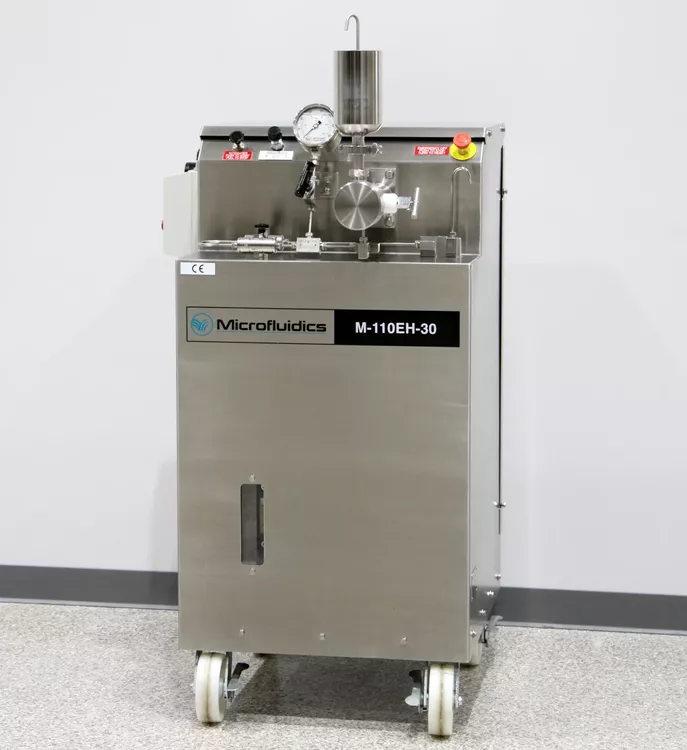

Microfluidics M-110EH-30 Electric-Hydraulic Microfluidizer Processor Homogenizer

Pressure range up to 2068 bar (30,000 psi)
Flow rate up to 330 mL/min @ 2068 bar (30,000 psi)
up to 450 mL/min @ 1725 bar (25,000 psi)
Feed temperature max. 75°C (165°F)
Holdup volume 100 mL
Compressed air 1 SCFM @ 3.4 bar (50 psi) with -18 to 37°C (0 to -35°F) max. dewpoint
Hydraulic oil heat exchanger cooling water 9.5 lpm (2.5 gpm) minimum @ 29°C (85°F) max
Product outlet heat exchanger cooling water 18.9 lpm (5 gpm) @ 16°C (65°F)
Minimum Sample Size 120 mL
Power rating 3 phase 60 Hz service, 208/230/460V, 3.7 KW (5 HP) (50 Hz European standard available)
Dimensions 33 x 34 x 58 in (84 x 87 x 148 cm)
Weight 450 lb (205 kg)
