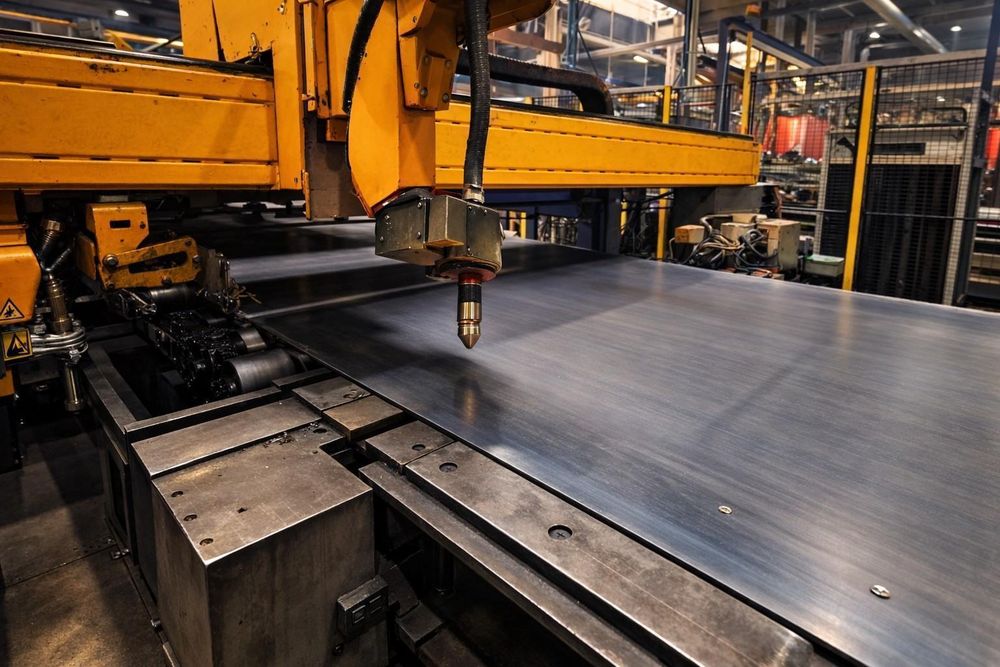

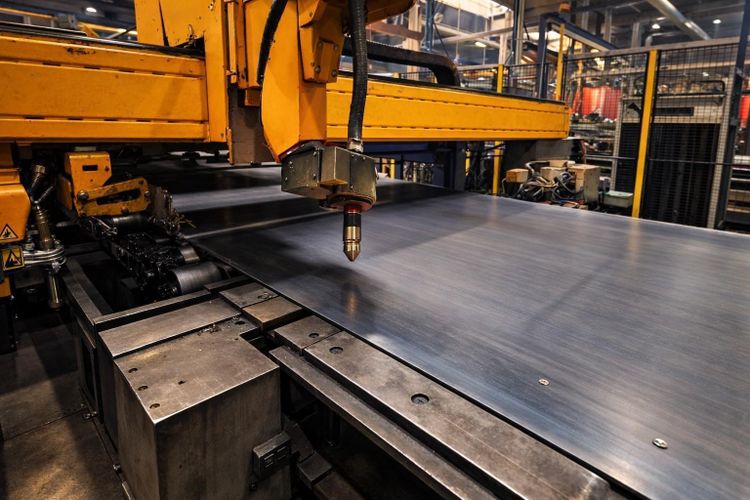

Microstep DS 6001.20P iMSNC (Windows 10 Pro)

Plasma Cutting Table Size: 6000 × 2000 mm
Material Thickness: 3 – 45 mm (up to 30 mm bevel cutting)
Bevel Angle: ±50°
Spindle Stroke: 400 mm
Drilling Range: 4 – 40 mm diameter
Threading Range: M4 – M33
Max Plate Thickness (drilling): 100 mm
Spindle Power: 26 kW
Spindle Speed: up to 1829 rpm
Tool Changer: 8 positions (ISO 40)
Spindle Taper: ISO 40

Plasma System: Hypertherm XPR 300
3D plasma bevel cutting head
Plasma marking system
Automatic sheet loading (vacuum system)
Automatic sheet infeed system
Automatic part sorting system
CNC Control: iMSNC (Windows 10 Pro)
Laser light positioning system

Machine Weight: 30 tons
Required Space: 16500 × 7100 mm
