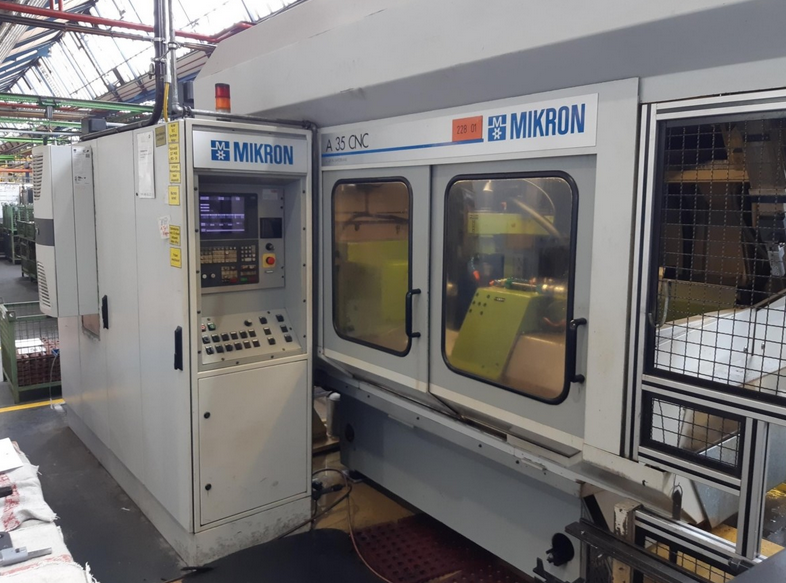

Mikron A 35 1,500 RPM Gear Hobbing Machine - Horizontal

Travel X-axis 140 mm
Travel Z-axis 300 mm
Travel Y-axis 100 mm
Travel W-axis 420 mm
Swivelling Angle Shift Milling Head A-axis 50°/60°
Control IBH CNC
Milling Cutter Speed B-axis 0–1,500 RPM
Workpiece Speed C-axis 0–350 RPM
Largest Milling Module with Hobs 4.5 mm
Largest Milling Module High-Performance Milling 3.0 mm
Number of Teeth 2–999
Max Workpiece Diameter Manual Loading 200 mm
Max Workpiece Diameter Automatic Loading 150 mm
Maximum Workpiece Length 400 mm
Largest Milling Cutter Diameter 102 mm
Smallest Milling Cutter Diameter 40 mm
Maximum Cutter Length 230 mm
Largest Milling Arbor Diameter 32 mm
Smallest Milling Arbor Diameter 16 mm
Feedrate X-axis 3,500 mm/min
Feedrate Z-axis 3,500 mm/min
Feedrate Y-axis 4,000 mm/min
Feedrate W-axis 5,500 mm/min
Feedrate V-axis (Gantry Loader) 80,000 mm/min
Horizontal Position Workpiece Spindle
Vertical Position Milling Spindle
Workpiece Held Between Headstock and Tailstock
Radial Slide Mounted on Base
Axial Slide Moves on Radial Slide
Shift Milling Head with Automatic Angle Adjustment
Loading Device
Many Accessories
