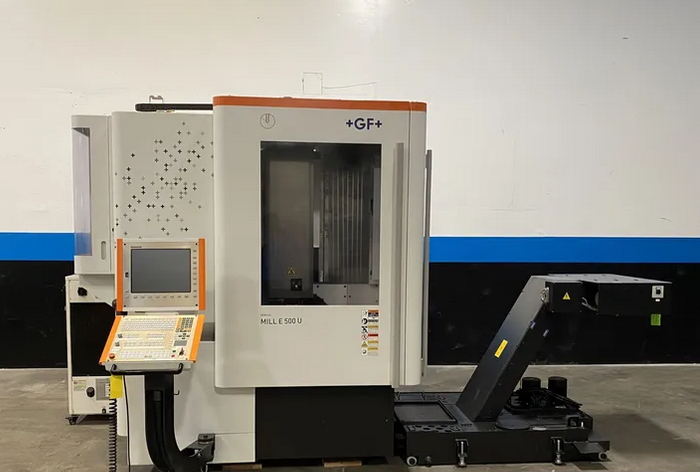

Mikron +GF+ MIKRON MILL E 500U 5 Axis

X-axis travel 19.69"
Y-axis travel 17.71"
Z-axis travel 15.75"
A-axis +65° –120°
C-axis 360°

Control Heidenhain iTNC 530
Spindle motor 25 hp
Spindle speed 12,000 RPM
Taper ISO40
ATC capacity 30
Table size 19.69" × 19.69"
Table load capacity 661 lb
Dimensions 105" × 128" × 132"
Weight 13,294 lb

**Machine equipped with**
1k cutting hours
Heidenhain iTNC 530 CNC control
5-axis machining
Renishaw TS-27R probe
Touch probe infrared OMP40
Assortment of tooling
Tool magazine DT40/BT40 & ISO4
TC arm holder for ISO 40
Kinematicsopt
(2) compressed air through spindle
Compressed ball 30 with base
Hem rotary tilting table
Hem linear glass scales 500U
Conveyor lift up chip
Movable hand wheel
Manual touch cycles Heidenhain
Manual pilot smart NC Heidenhain
Manual DIN/ISO programming Heidenhain
Air required 100 psi 4 scfm
Power Kw 400v 3-phase
