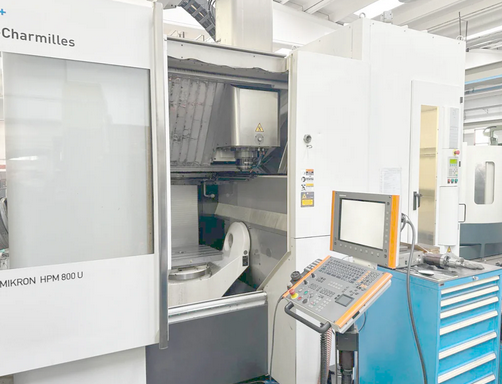

Mikron HPM 800 U 5 Axis

X-axis travel 800 mm
Y-axis travel 800 mm
Z-axis travel 550 mm
A axis +91 / -121°
C axis 360°
Heidenhain iTNC 530 Control
Table length 630 mm
Table width 440 mm
Number of T-slots 5
T-slot distance 100 mm
T-slot width 16 mm
Maximum table load 800 kg
Maximum swing circle 800 mm
HSK-A63 spindle nose
Spindle nose to table 600 mm
Spindle speed 0–20000 rpm
Feed range 0–20000 mm/min
Rapid traverse 45 m/min
Acceleration 6 m/s²
Maximum feed force 6000 N
Air connection 6 bar
Voltage 3×400 V 50 Hz
Total power 55 kW
Noise level 75 dB(A)
Machine weight 15000 kg
Machine length 3505 mm
Machine width 3100 mm
Machine height 2980 mm
Number of simultaneous axes 5
Tool changer number of tools 115
Tool diameter max 80 mm
Tool diameter with free adjacent pockets 160 mm
Tool length 350 mm
Maximum tool weight 8 kg
High-pressure coolant
Paper filtration system
Water cooler
Touch probe
Laser tool setting system
Chip conveyor
Number of pallets 2
Handwheel electronic
Tool cabinet
Reference ball
Set of tool holders
Set of shrink tool holders
Set of collet/tool holders
Set of collets
