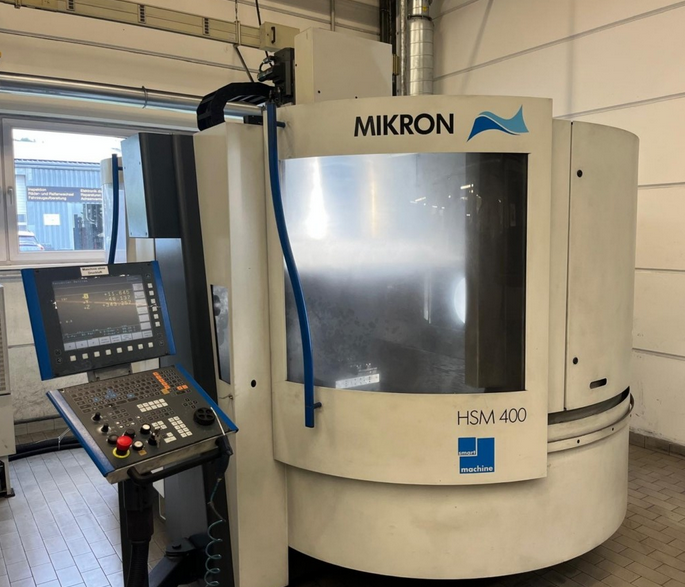

Mikron HSM 400 3 Axis

X travel 400 mm
Y travel 450 mm
Z travel 350 mm

Control Heidenhain iTNC 530
Tool adaptor HSK 40E
Spindle speed 30000 rpm
Fixed table dimensions 300 × 400 mm
Workpiece weight 200 kg
Pallet table size 320 × 320 mm
Feed speed X/Y/Z 40 m/min
Spindle motor 13 kW
Total power requirement 16 kW
Machine weight approx. 7500 kg

Features / Accessories:
Machine still in the delivery factory
Condition ready for operation
CE signed
Electric 380 Volt
7-station pallet changer
Cabin
Burn refrigeration unit
Keller L-Cut extraction system (2012)
PS 32 setup button
Tool blow-off device
High-speed 3-axis universal machining center
Operating hours 44899 h
Load hours 32369 h
Spindle time since replacement 13350 h
Gantry-style machine with monoblock polymer concrete construction
Compact linear ball bearings
Heidenhain direct measuring system
Hydraulic power unit for tool and pallet clamping
Digital drives with liquid-cooled Siemens AC servo motors
